Connector Locations

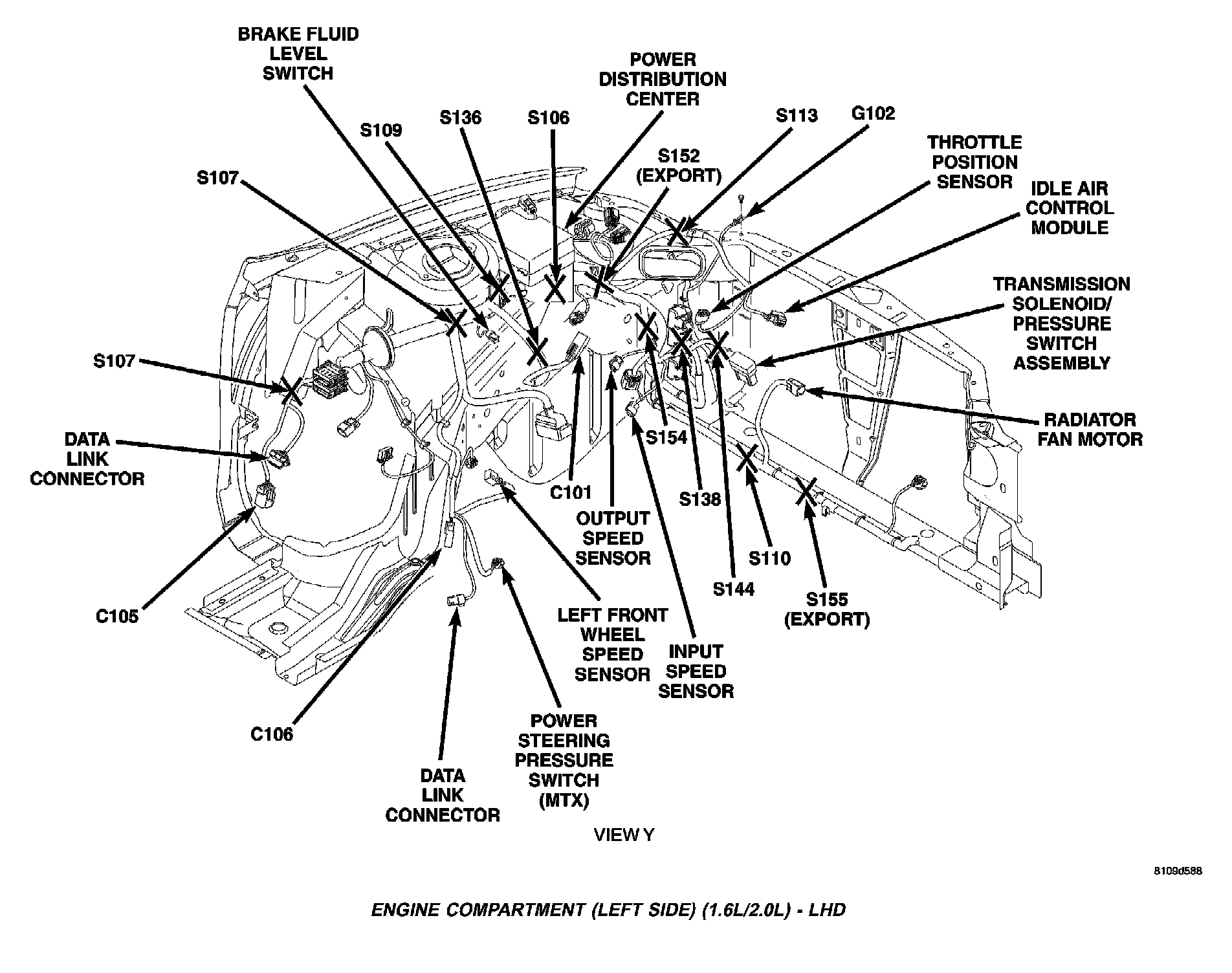

Engine Compartment (Left Side) (1.6L/2.0L) - LHD:

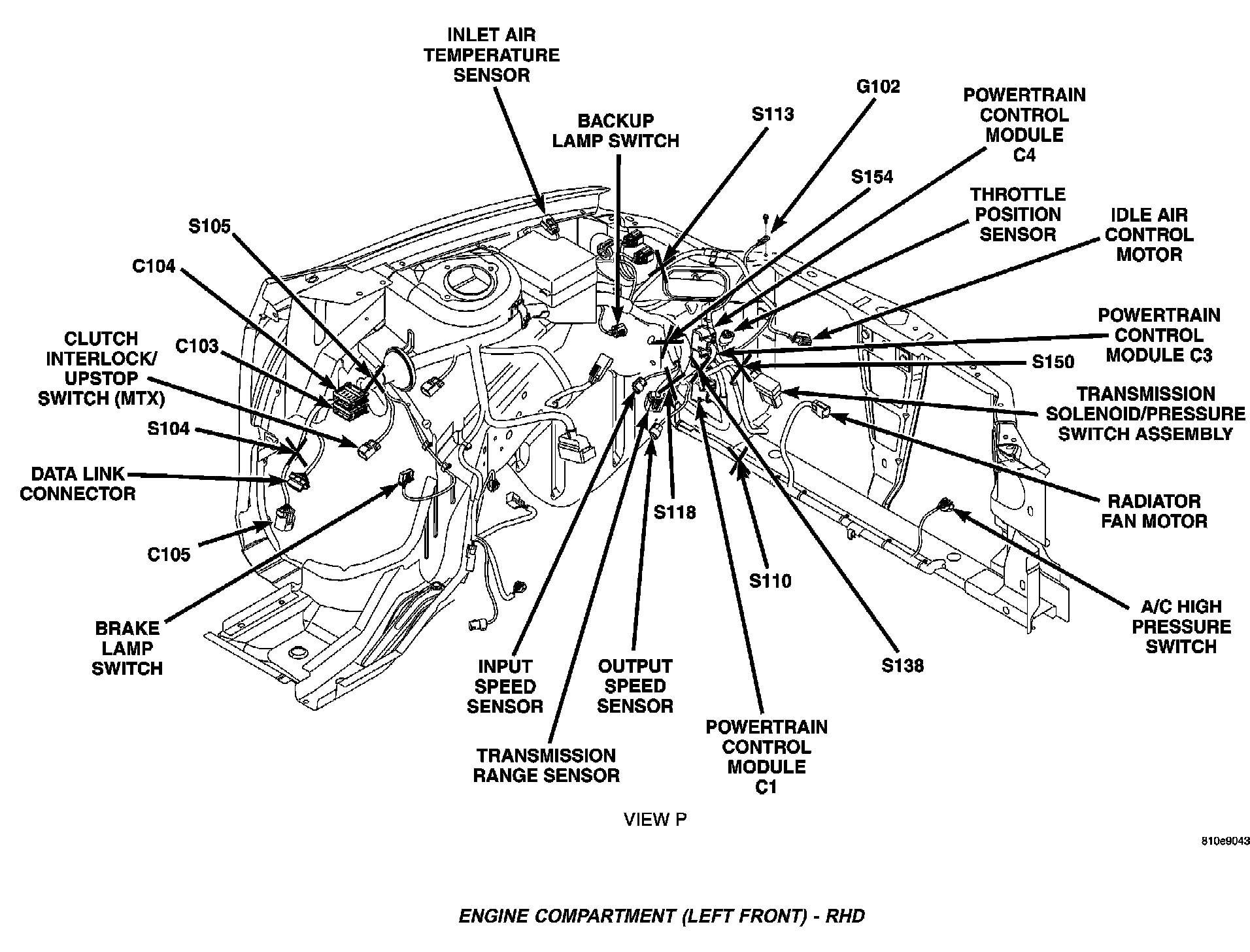

Engine Compartment (Left Front) - RHD:
