Battery Temperature Sensor: Installation

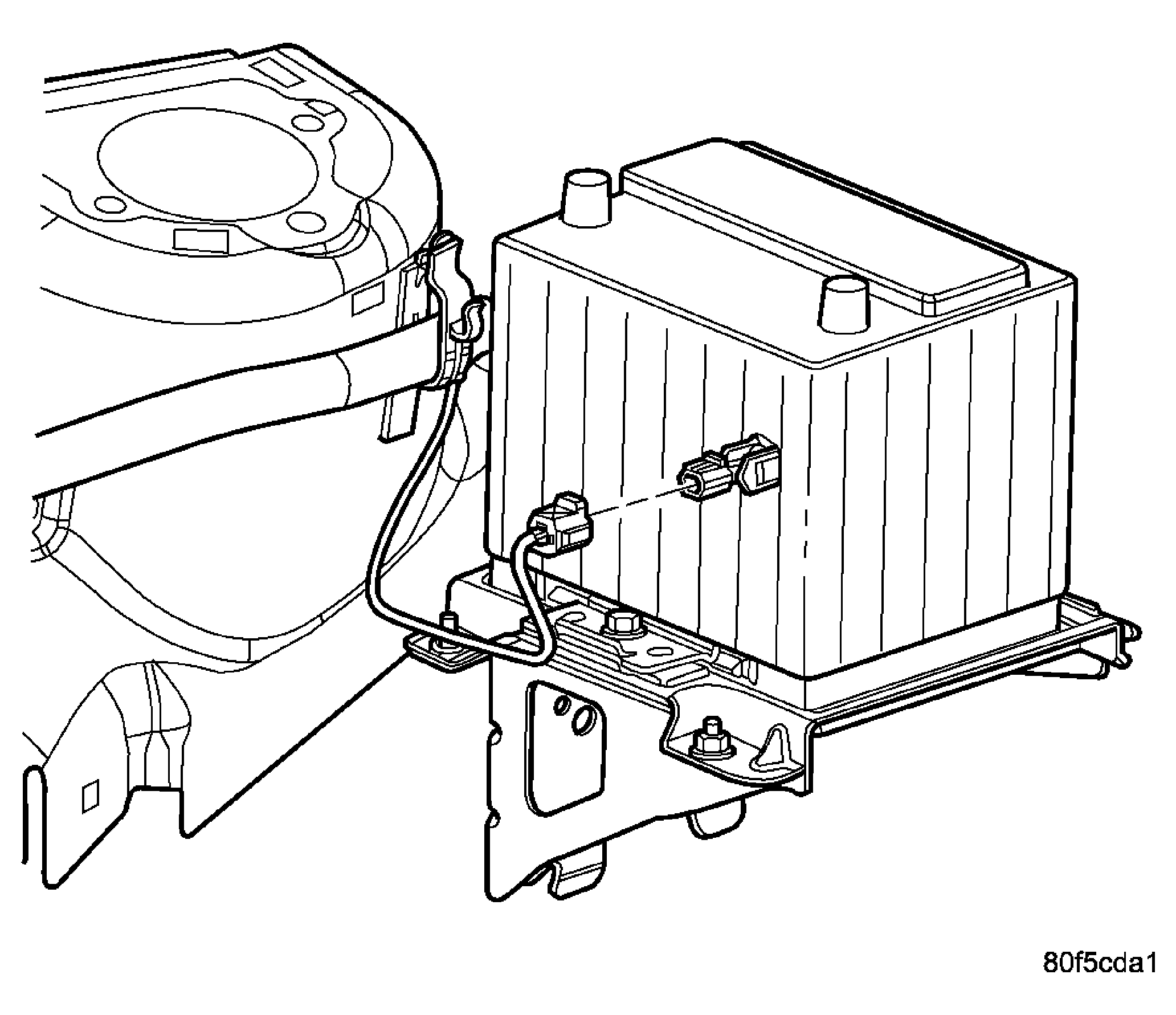

  1. Install the Battery Temperature Sensor to the thermal guard. See Figure.
  2. Carefully install the thermal guard over the battery.
  3. Connect the Battery Temperature Sensor electrical connector.
  4. Connect the battery positive cable then the negative cable.
  5. Close hood.
