Automatic Shut Down Relay: Description

The ASD relay is located in the PDC. See Fig 1 . The inside top of the PDC cover has label showing relay and fuse identification.

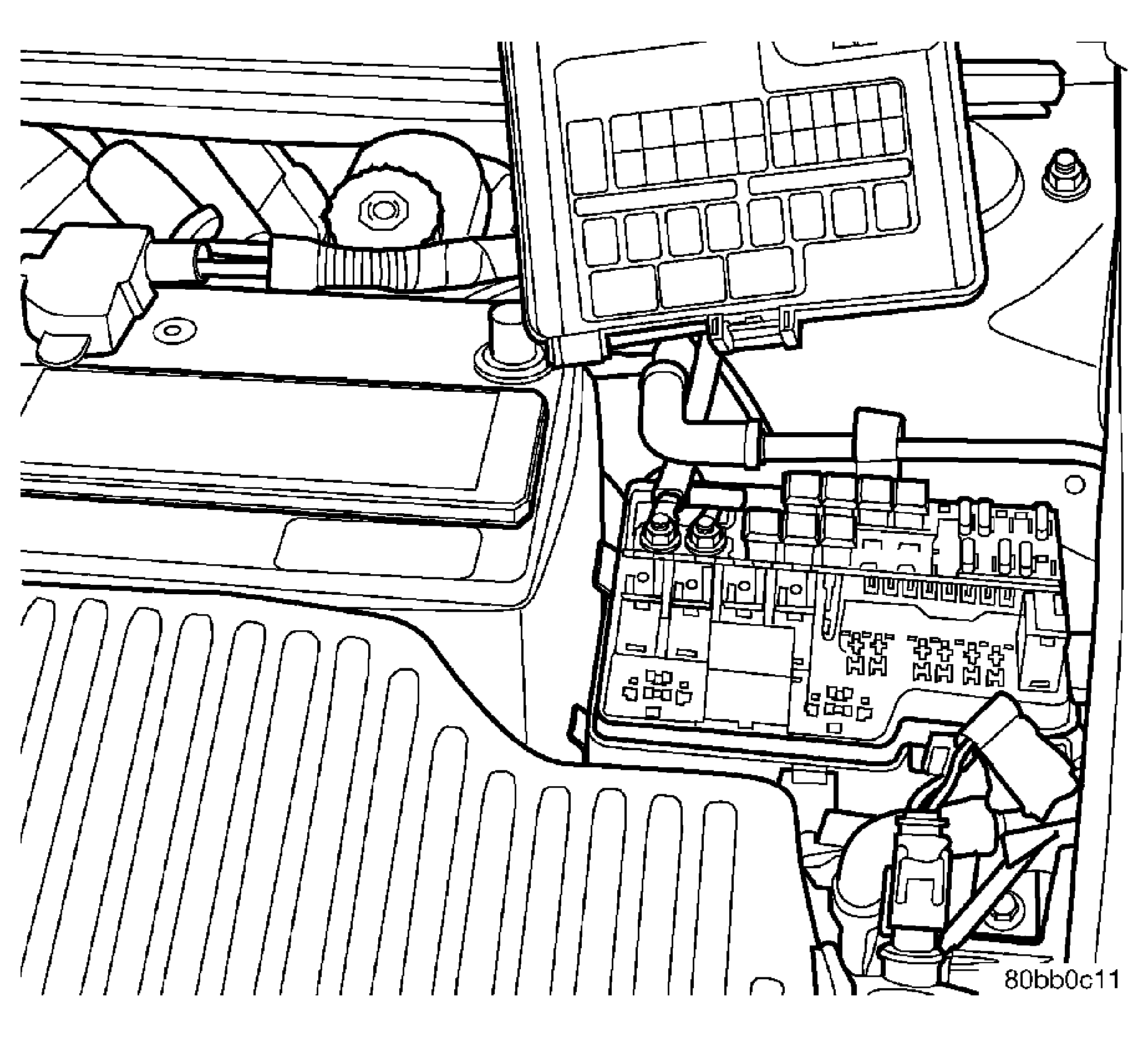

Fig 1: Power Distribution Center (PDC)

Courtesy of DAIMLERCHRYSLER CORP.
