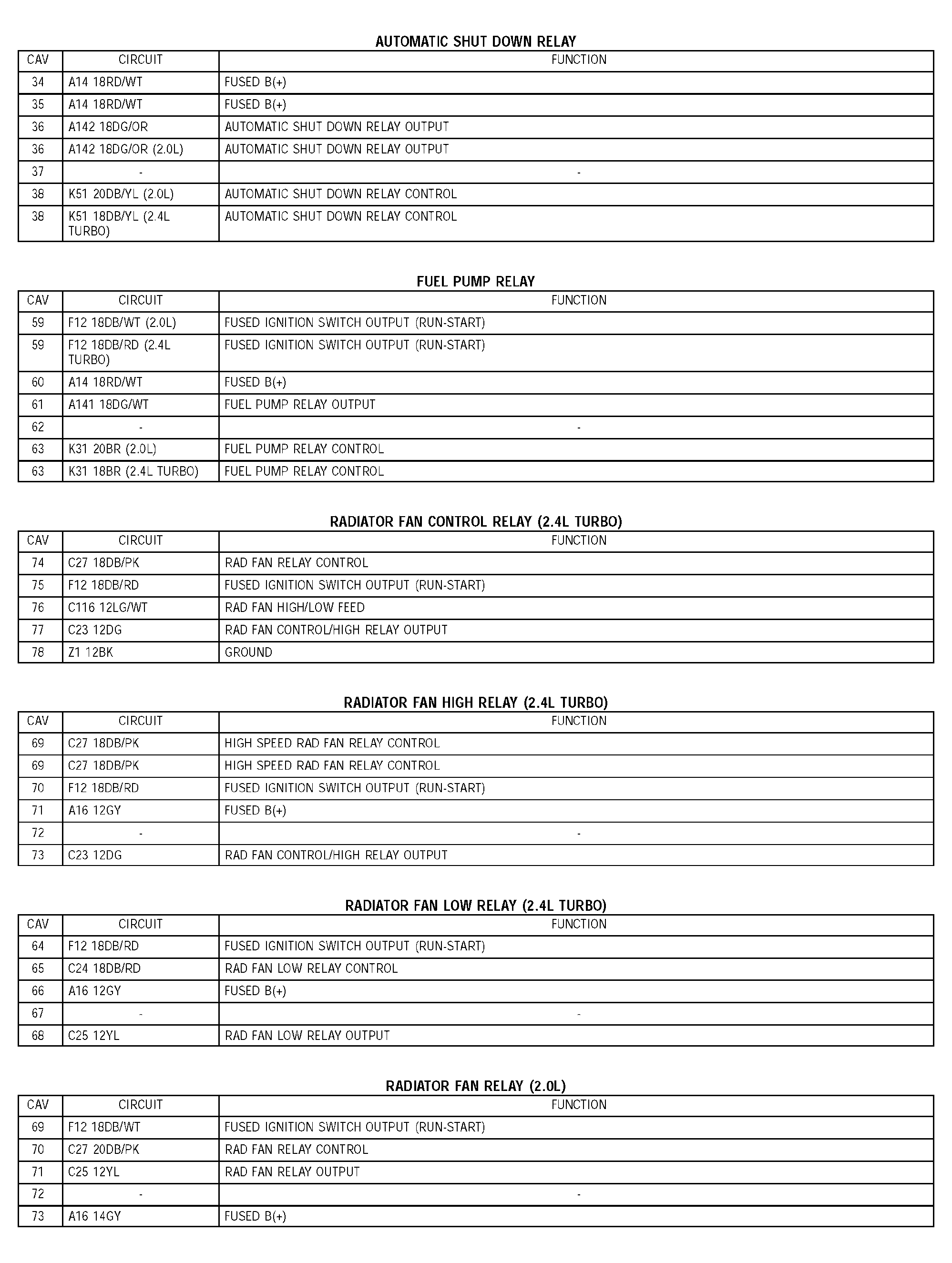

Automatic Shut Down Relay
Fig 1: Identifying Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
