Child Tether Assembly: Description

The Child Tether Assembly consists of the Child Tether Anchor and the Child Tether Assembly Caps. The Child Tether Anchor is not serviceable. See Fig 1 and Fig 2. The anchor is located on the rear shelf panel. The Child Tether Assembly Cap is not serviceable. The rear trim panel will have to be replaced. See Fig 3.

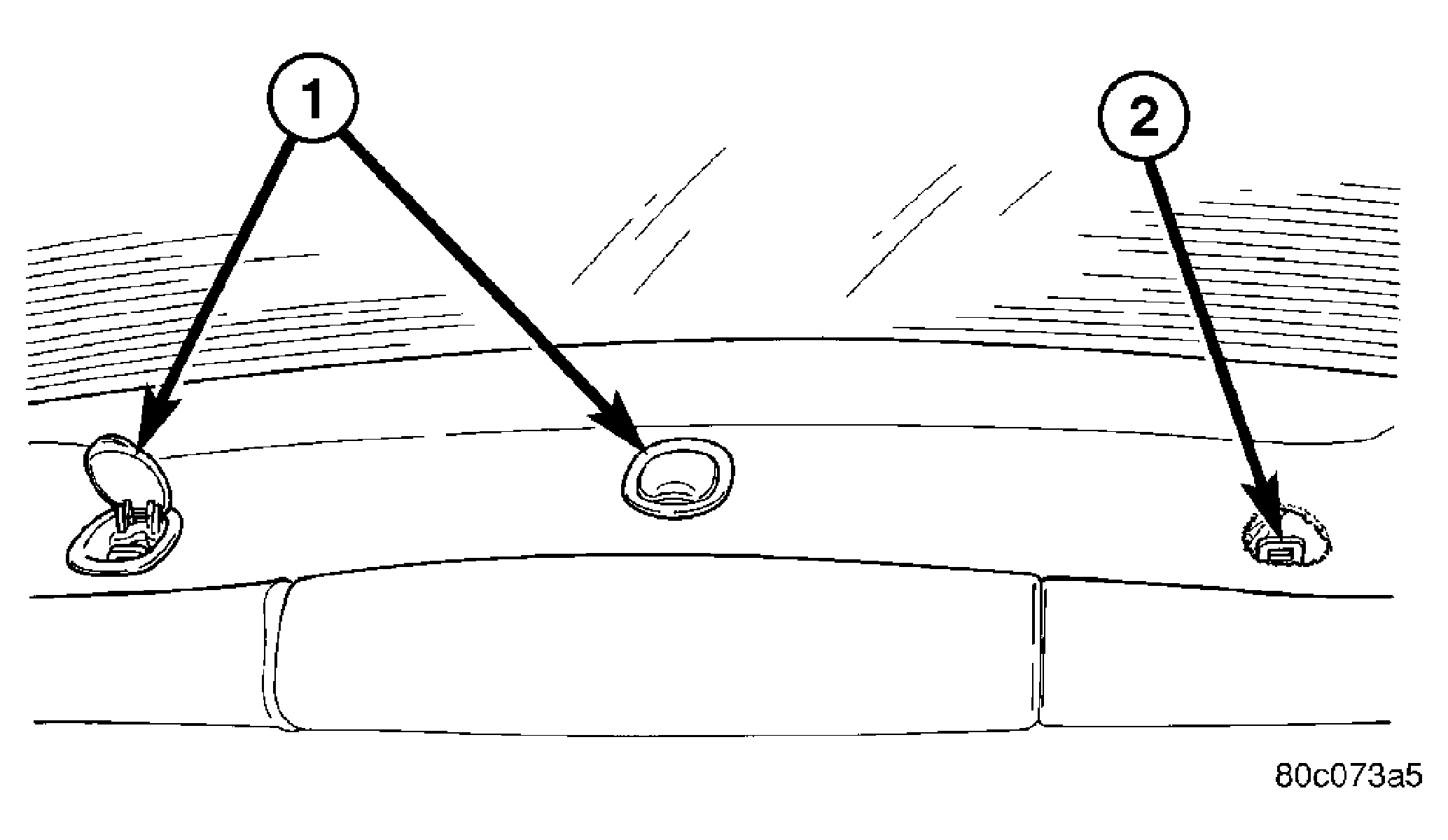

Fig 1: Child Tether Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - CHILD TETHER CAPS

2 - CHILD TETHER ANCHORS

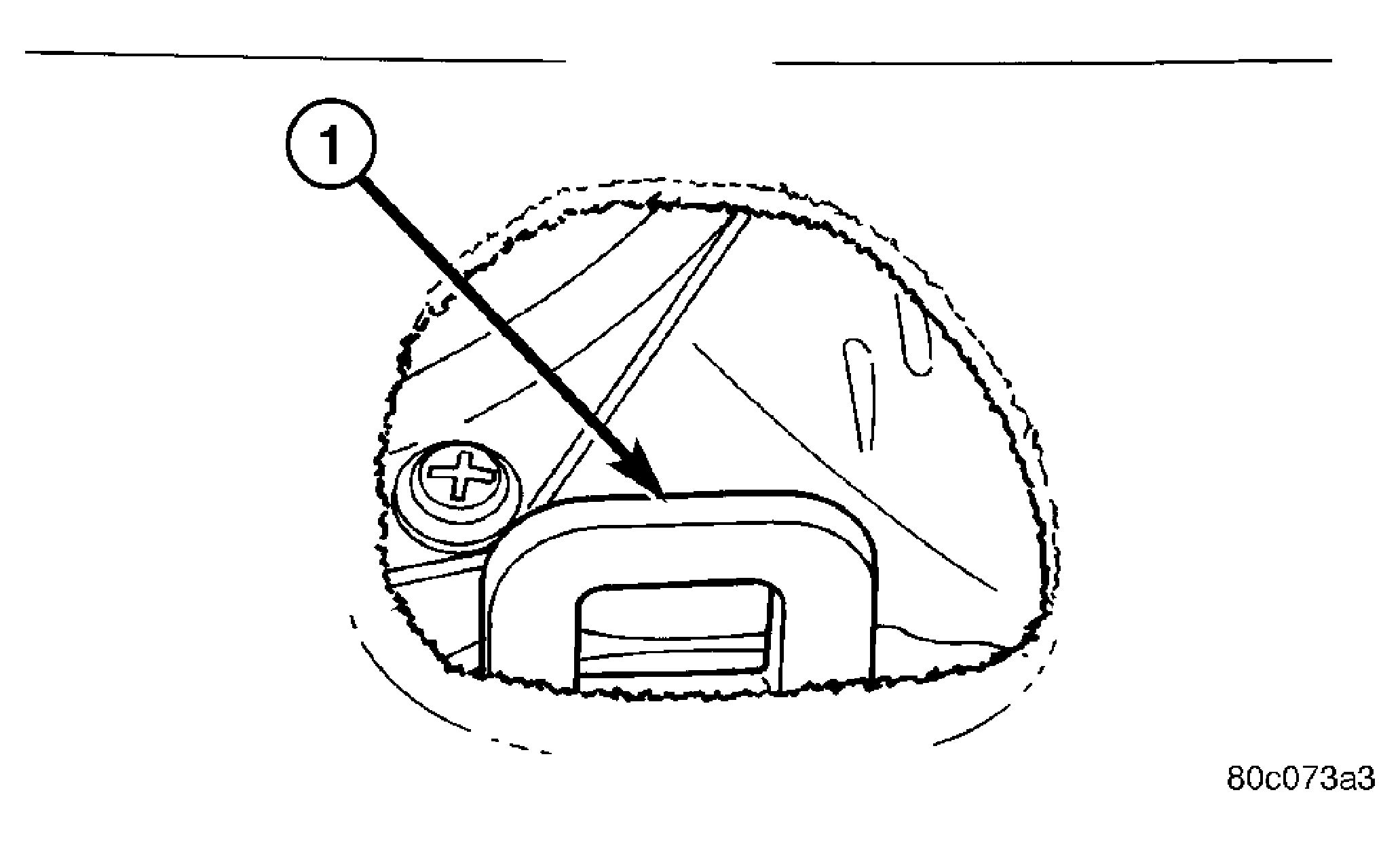

Fig 2: Child Tether Anchor

Courtesy of DAIMLERCHRYSLER CORP.

1 - CHILD TETHER ANCHOR

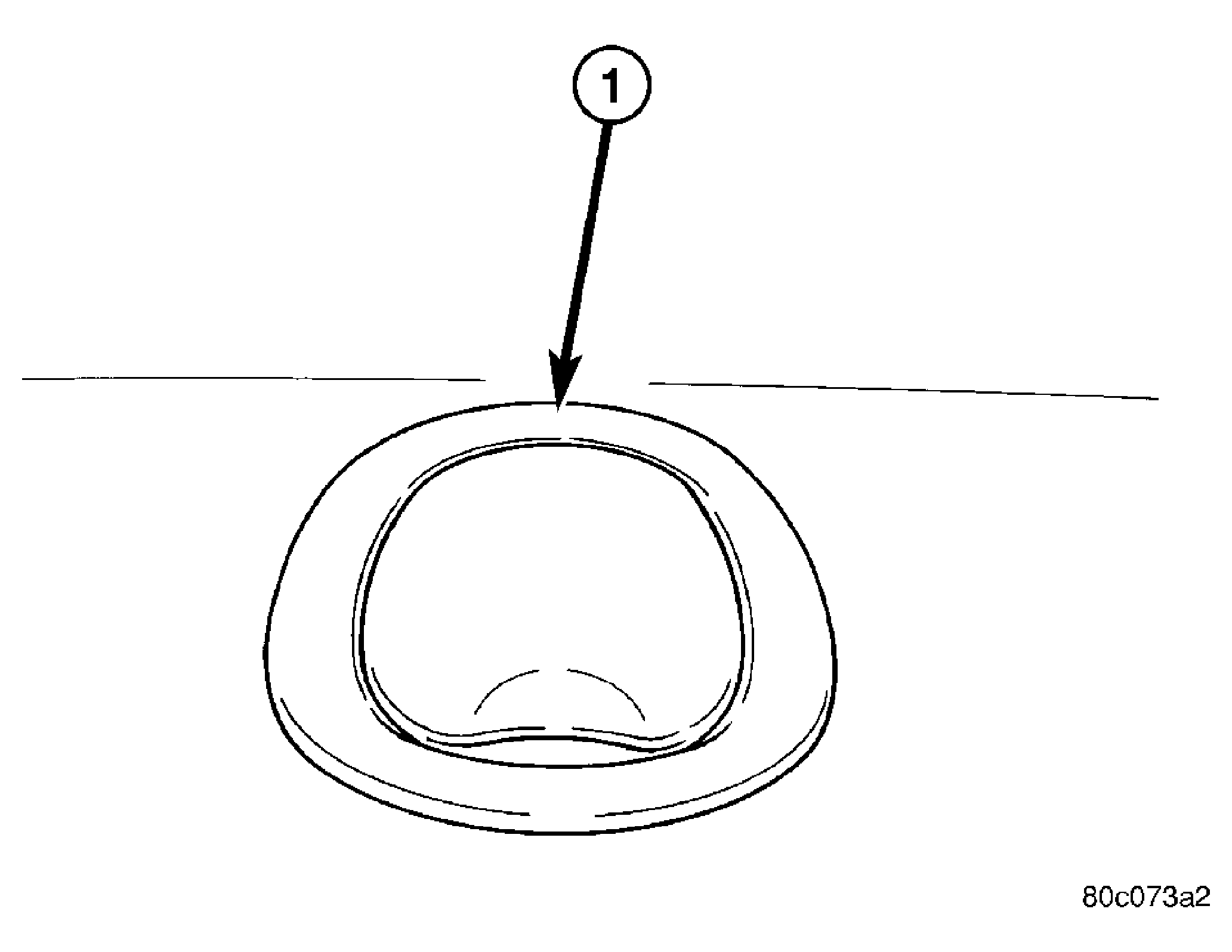

Fig 3: Child Tether Assembly Cap

Courtesy of DAIMLERCHRYSLER CORP.

1 - CHILD TETHER ASSEMBLY CAP AND COVER
