Fuel Level Sending Unit / Sensor: Installation

Noting their previous positions, connect wires from 2-wire harness into its connector.
Plug 2-wire harness connector into pump module electrical connector.
Position sending unit (4) to tracks on fuel pump module. Slide and snap into place. See Fig 1.
Install fuel pump module. Refer to FUEL PUMP MODULE Removal/Installation.

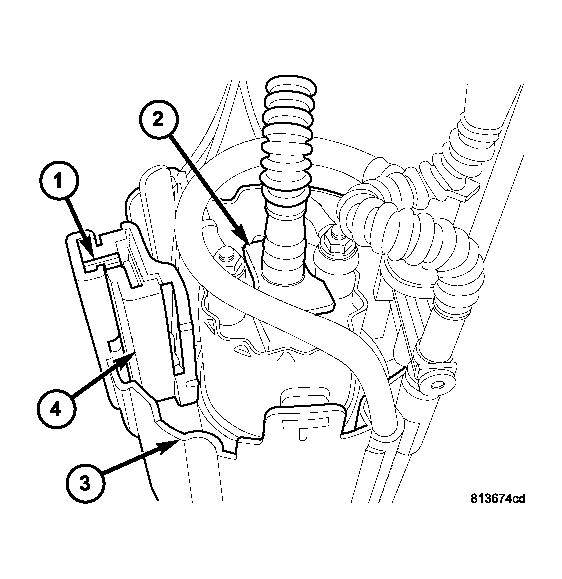

Fig 1: FUEL LEVEL SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - RELEASE TABS

2 - ELECTRIC FUEL PUMP

3 - BOTTOM OF FUEL PUMP MODULE

4 - SENDING UNIT
