Engine Control Module C1 (OBD)

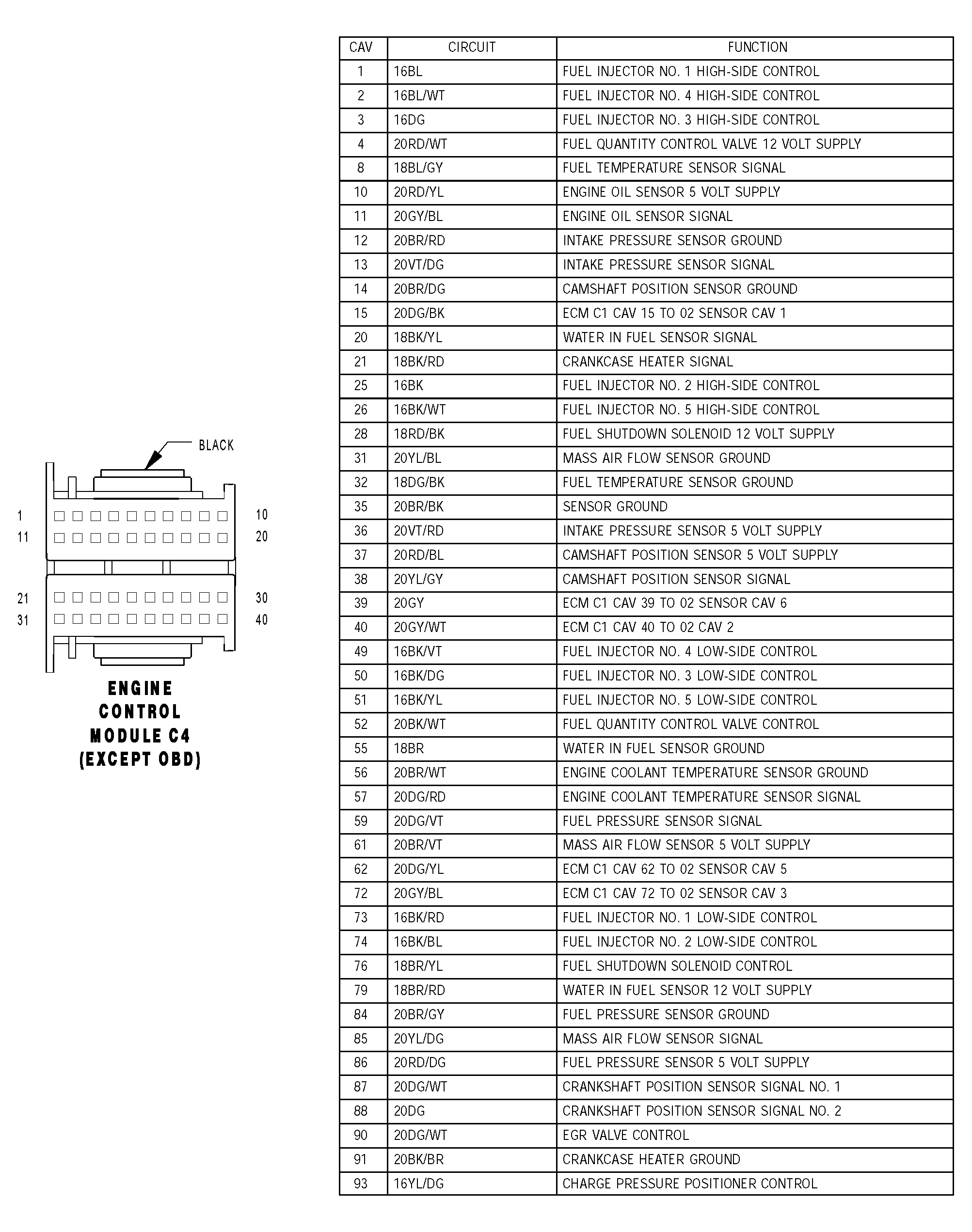

Fig 1: Identifying Engine Control Module C1 (OBD) Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
