Sentry Key Remote Entry Module (SKREEM)

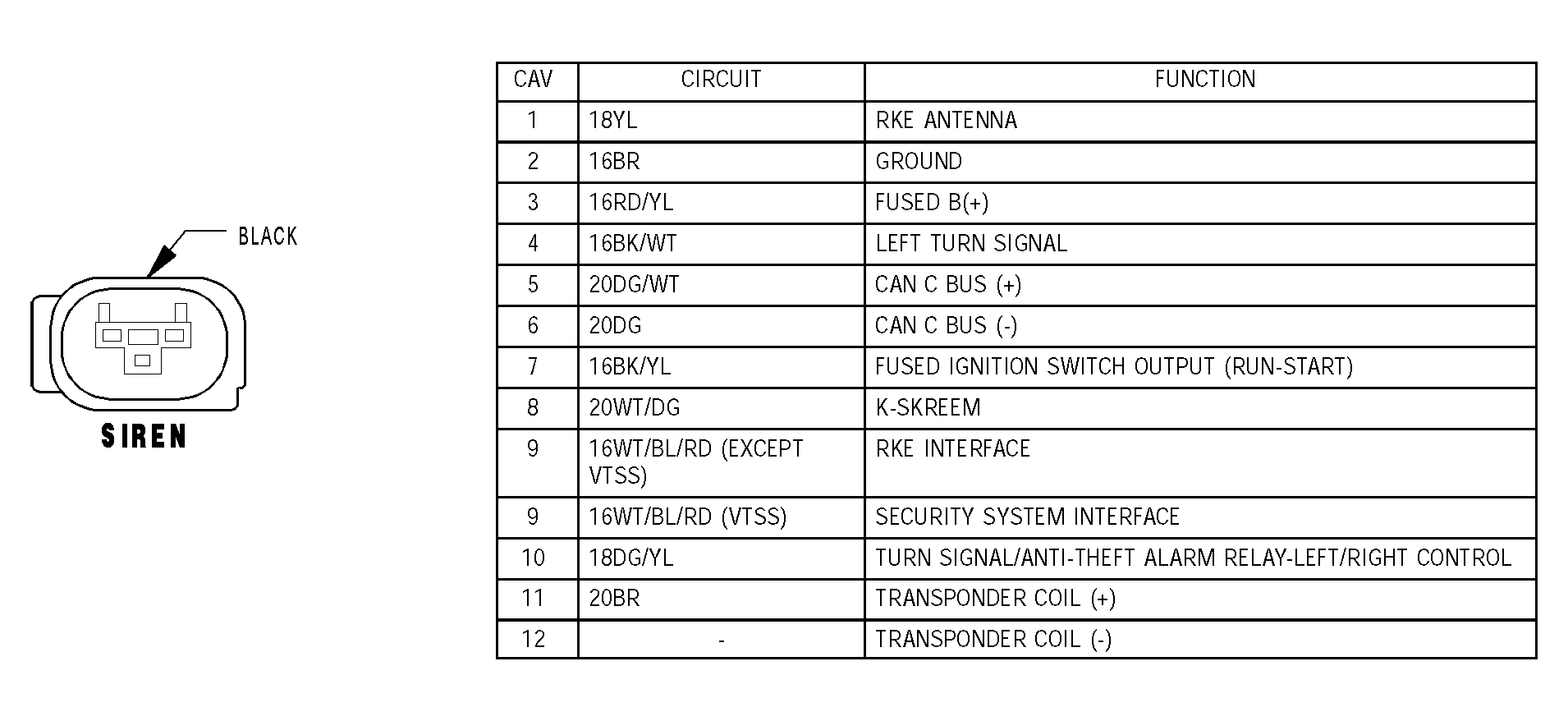

Fig 1: Identifying Sentry Key Remote Entry Module (SKREEM) Connector Pinouts
G04536656Courtesy of DAIMLERCHRYSLER CORP.
