Leak Detection Pump: Installation

  1. Install pump to bracket and tighten screws to 1.2 N.m (10.6 in. lbs.).
  2. Before installing hoses to LDP, make sure they are not cracked or split. If a hose leaks, it will cause the Check Engine Lamp to illuminate.  Connect lines to the LDP.

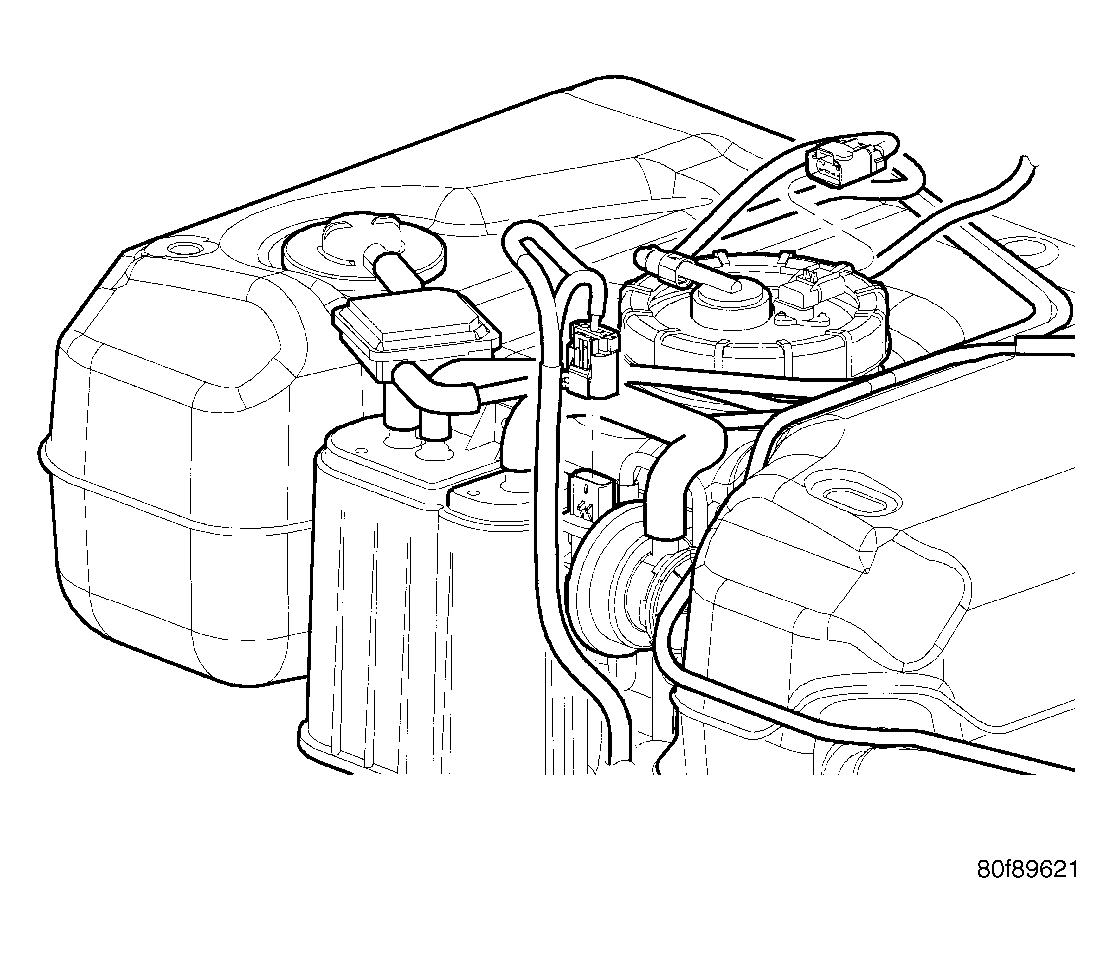

  3. Install electrical connector to pump and push locking tab to lock. See Figure.
  4. Install the EVAP canister.

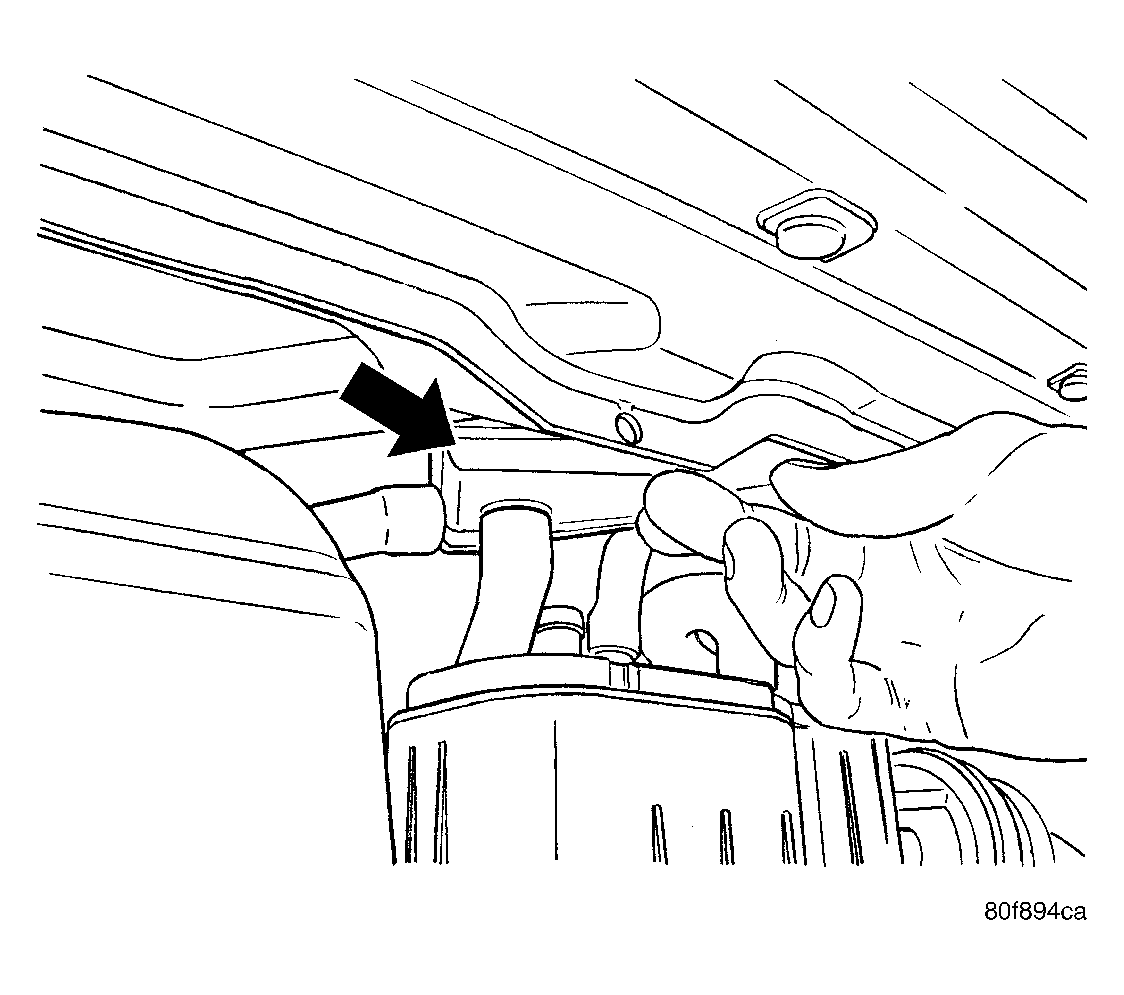

  5. Install the liquid separator to the canister. See Figure.
  6. Use the DRBIII(R) scan tool, verify proper operation of LDP.
  7. Install the access panel.
  8. Connect the negative battery cable.
