Multi-Function Switch - Gray 20 Way

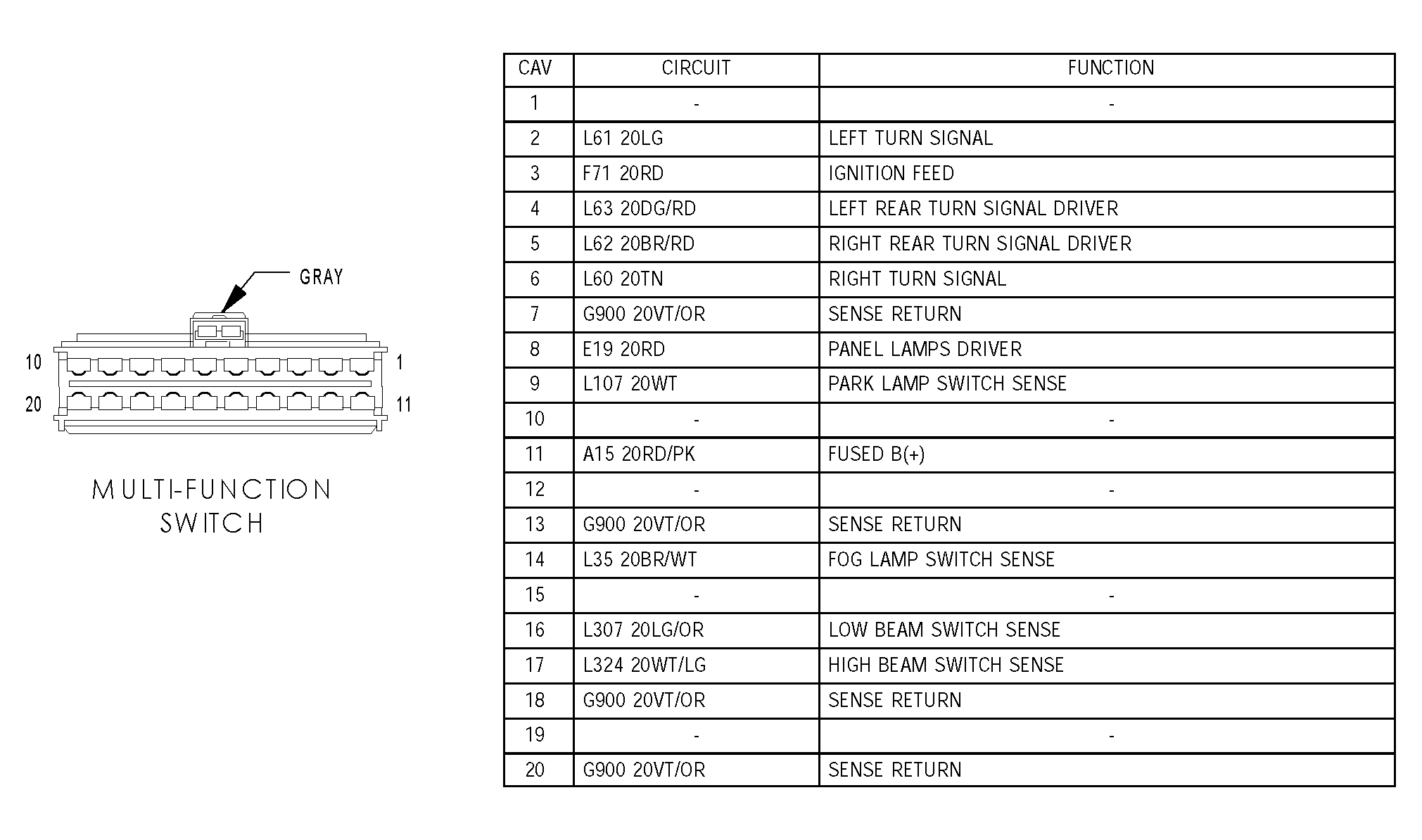

Fig 1: Identifying Multi-Function Switch - Gray 20 Way Connector Pinout
G04550349Courtesy of DAIMLERCHRYSLER CORP.
