Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Connector PINOUTS
>>
Tire Pressure Monitor Module - Blue 6 Way
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tire Pressure Monitor Module - Blue 6 Way

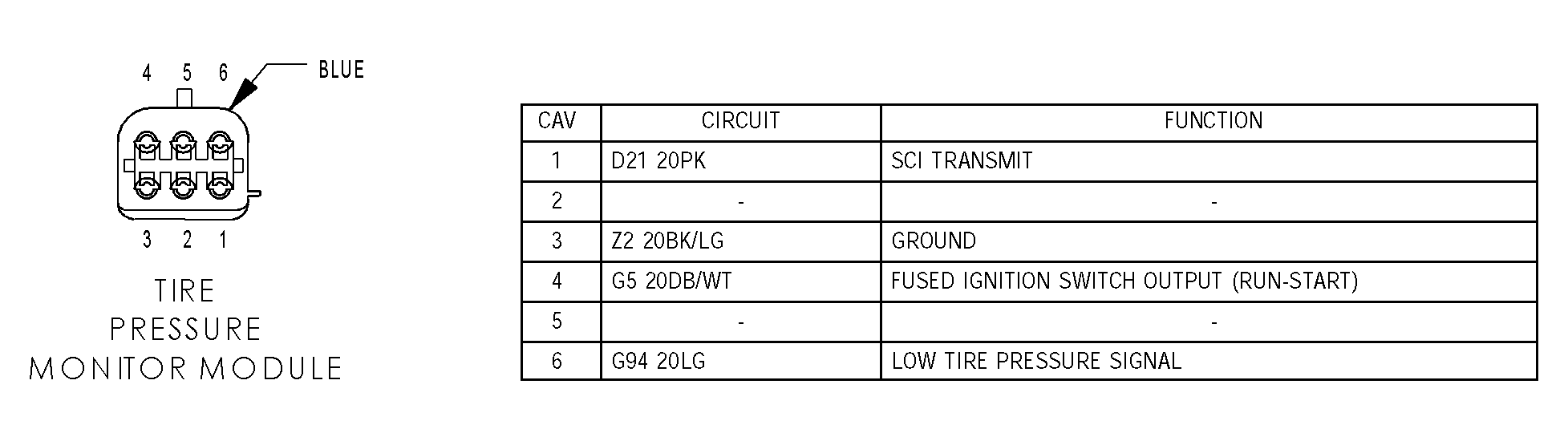

Fig 1: Identifying Tire Pressure Monitor Module - Blue 6 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
