Transmission Position Sensor/Switch: Service and Repair

TRANSMISSION RANGE SENSOR

REMOVAL
1) Remove valve body assembly from transaxle.

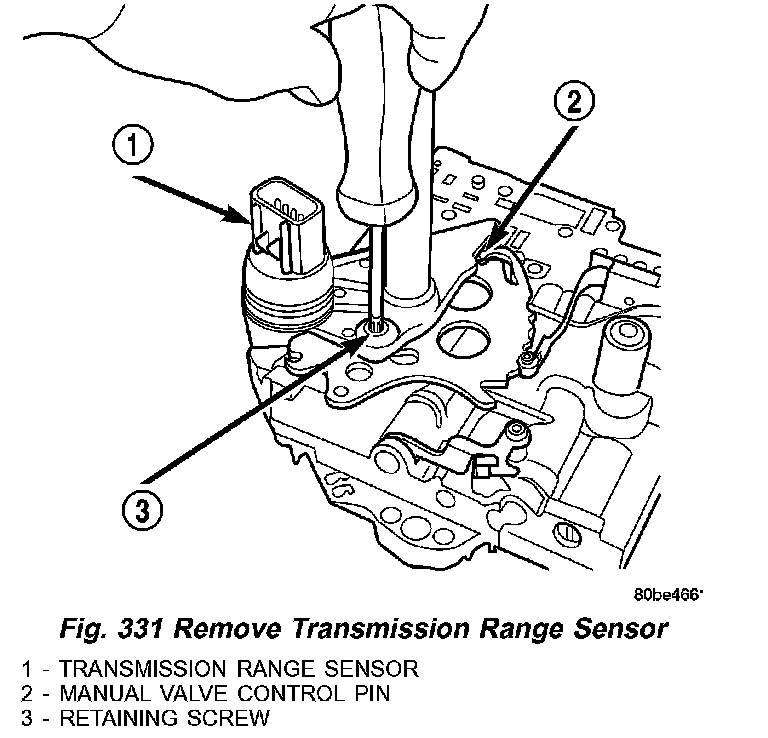

Fig. 331 Remove Transmission Range Sensor:

2) Remove transmission range sensor retaining screw (3) (Fig. 331) and remove sensor (1) from valve body
3) Remove TRS (1) from manual shaft.

INSTALLATION

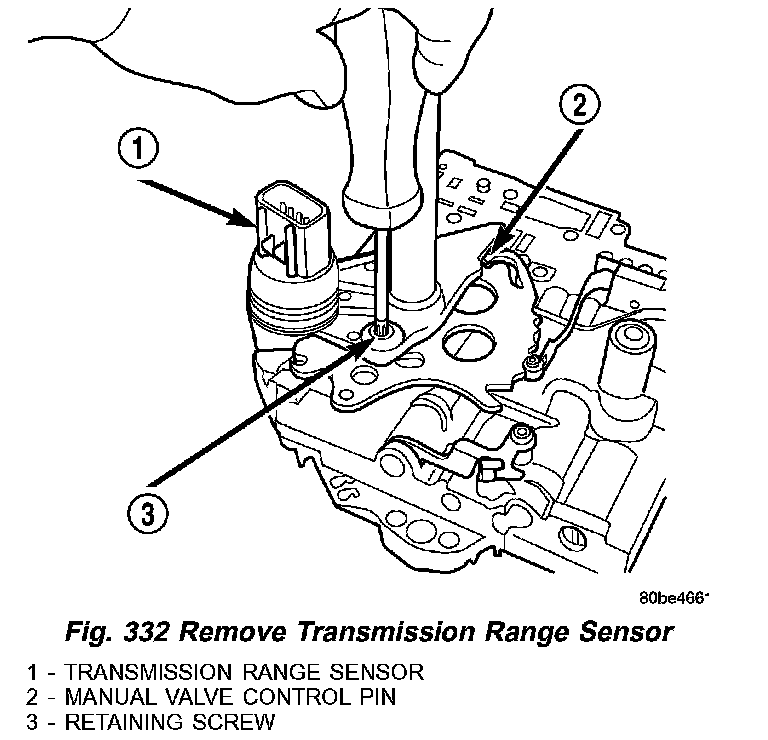

Fig. 332 Remove Transmission Range Sensor:

1) Install transmission range sensor (TRS) (1) (Fig. 332) to the valve body and torque retaining screw (3) to 5 Nm (45 inch lbs.).
2) Install valve body to transaxle.
