Body Control Module: Diagrams
Body Control Module C1:

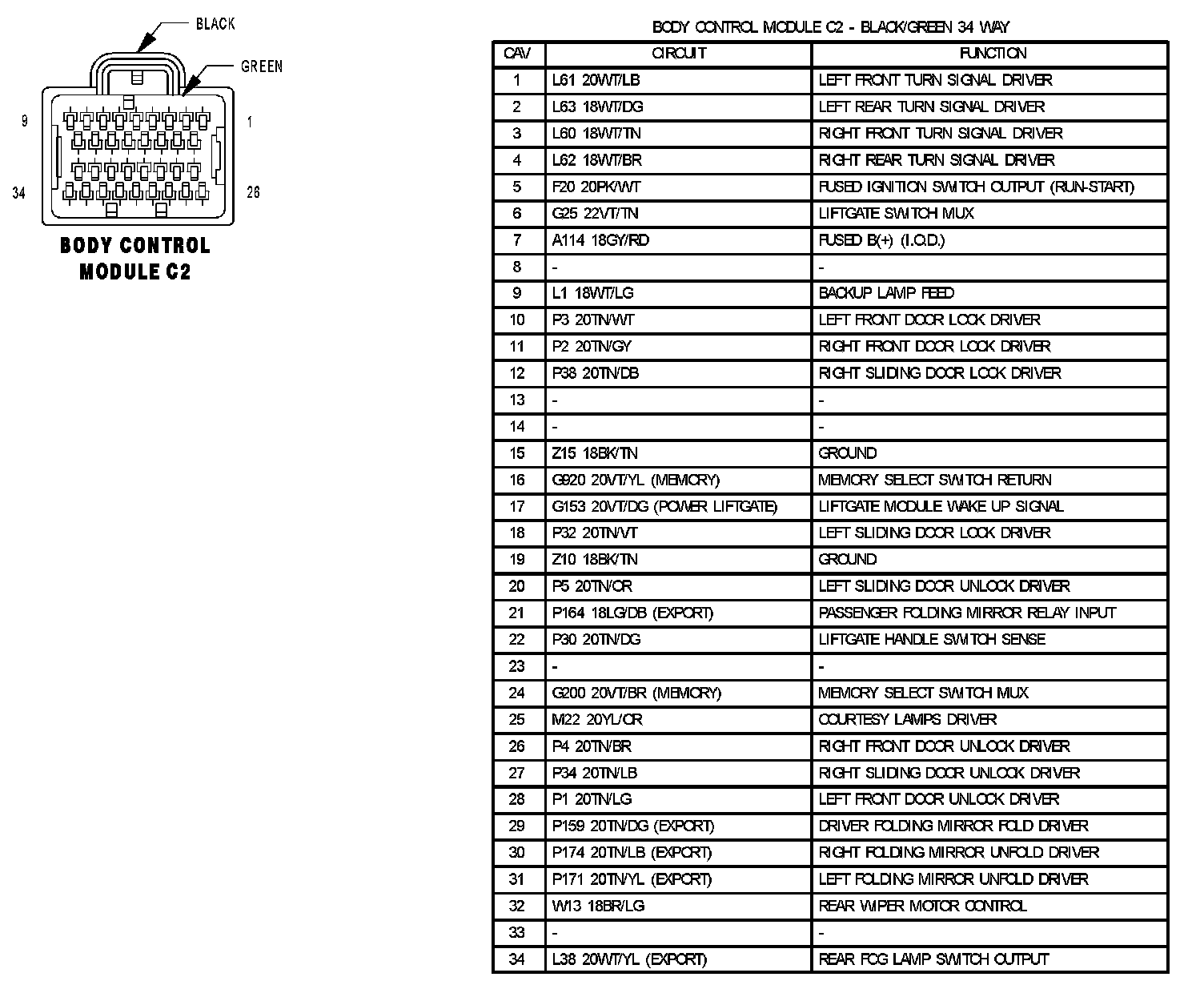

Body Control Module C2:

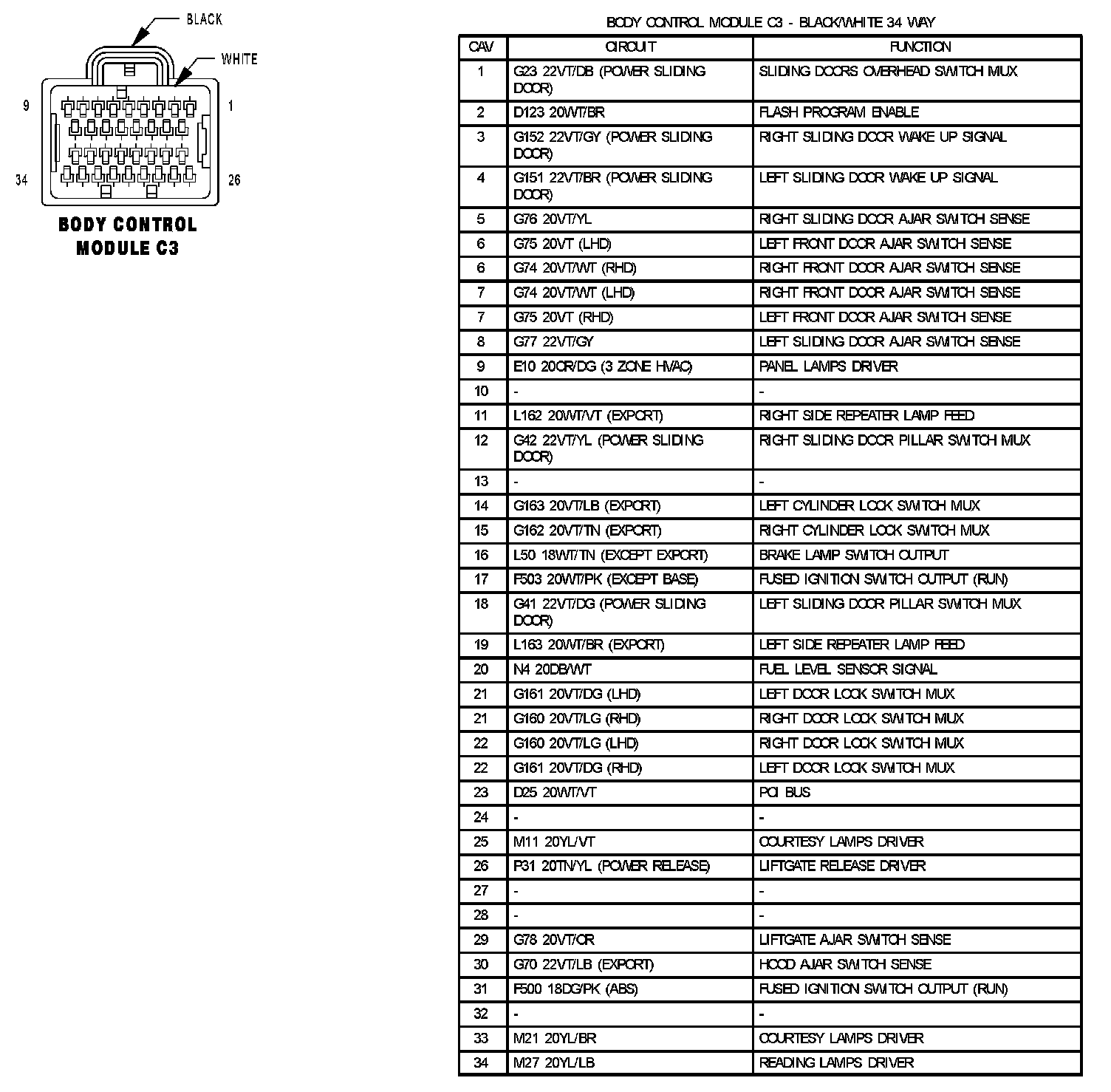

Body Control Module C3:

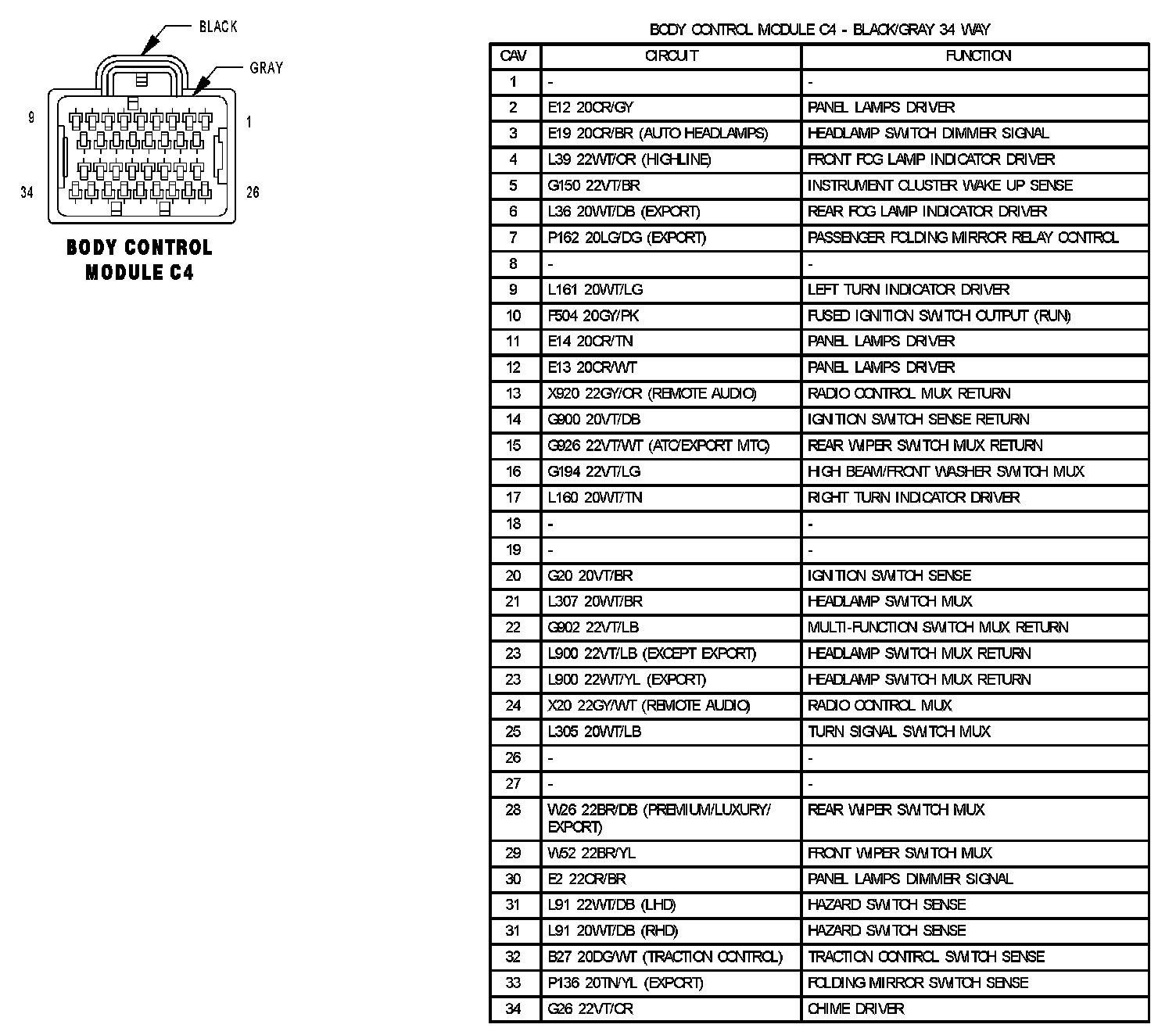

Body Control Module C4:
