System Specifications

SPECIFICATIONS - 40TE TRANSAXLE

GENERAL SPECIFICATIONS:




GEAR RATIOS:




BEARING SETTINGS (END PLAY & TURNING TORQUE):




CLUTCH CLEARANCES:




OIL PUMP CLEARANCES:




INPUT SHAFT:

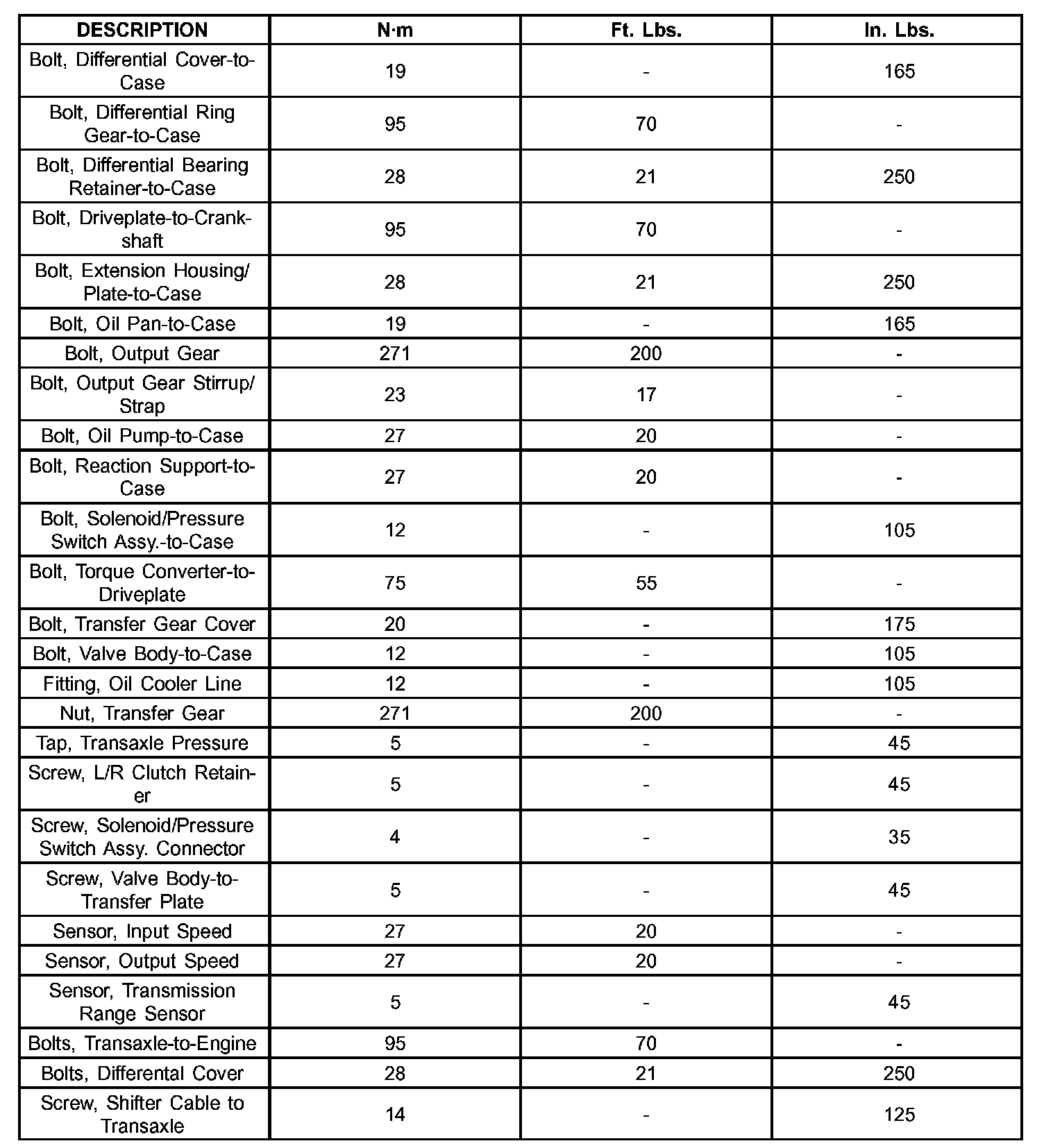

TORQUE SPECIFICATIONS:




TORQUE SPECIFICATIONS:
