Alignment: Testing and Inspection

PRE-ALIGNMENT INSPECTION

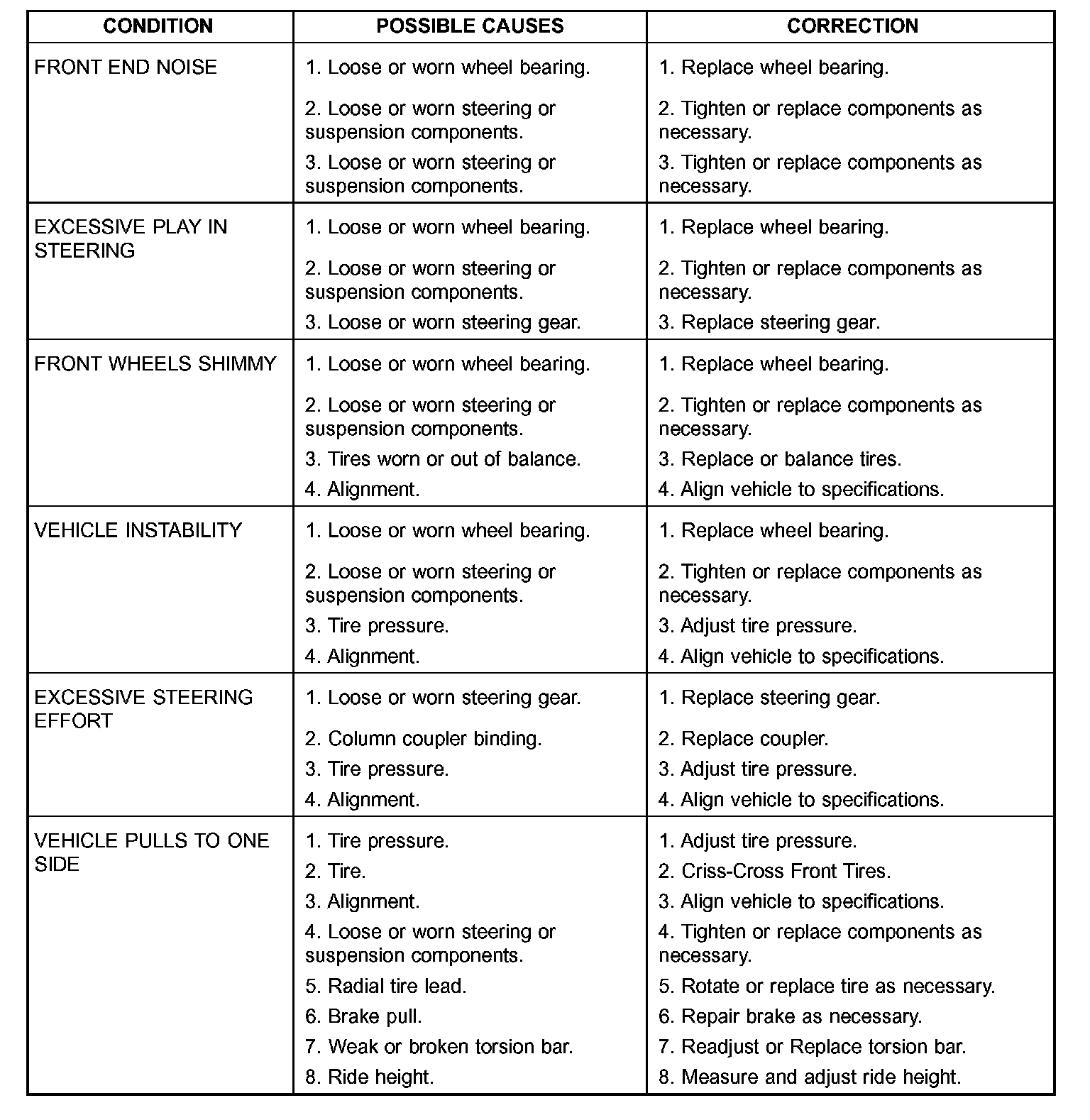

Before starting wheel alignment, the following inspection and necessary corrections must be completed. Refer to Suspension and Steering System Diagnosis Chart. Testing and Inspection

NOTE: Vehicle should have a full tank of fuel prior to measuring and adjusting alignment.

SUSPENSION AND STEERING SYSTEM DIAGNOSIS:

1. Inspect tires for size, air pressure and tread wear.
2. Inspect front wheel bearings for wear.
3. Inspect front wheels for excessive radial or lateral runout and balance.
4. Inspect ball studs, linkage pivot points and steering gear for looseness, roughness or binding.
5. Inspect suspension components for wear and noise.
6. Check suspension ride height.
7. Road test the vehicle.
