Battery Temperature Sensor: Locations

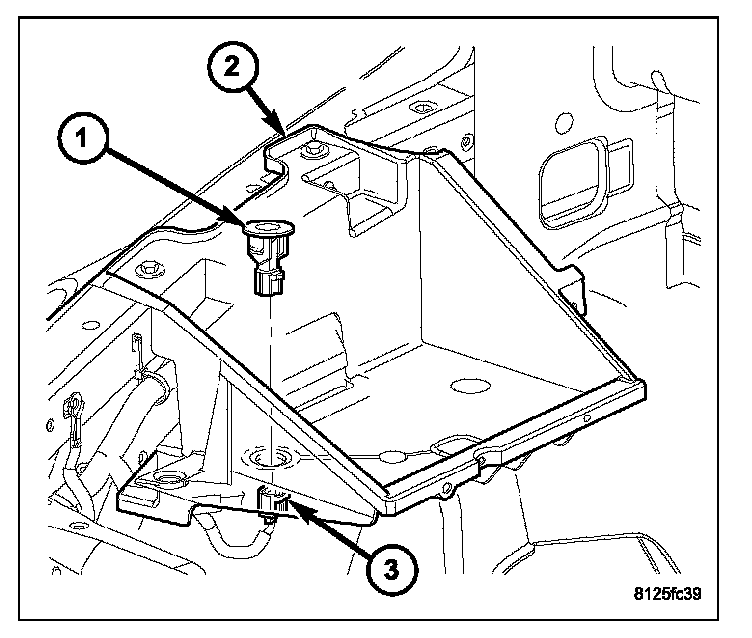

The battery temperature sensor (1) is located under vehicle battery and is attached to a mounting hole on battery tray (2).
