Adjuster-Seat Belt Turning Loop: Installation: Front

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

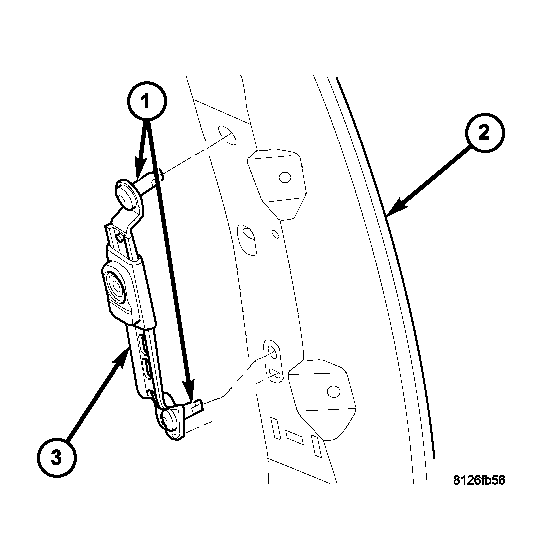

Fig 1: Height Adjuster

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the seat belt turning loop adjuster (3) to the B-pillar (2).
2. Install and tighten the two screws (1) that secure the adjuster to the B-pillar. Tighten the screws to 39 N.m (29 ft. lbs.).

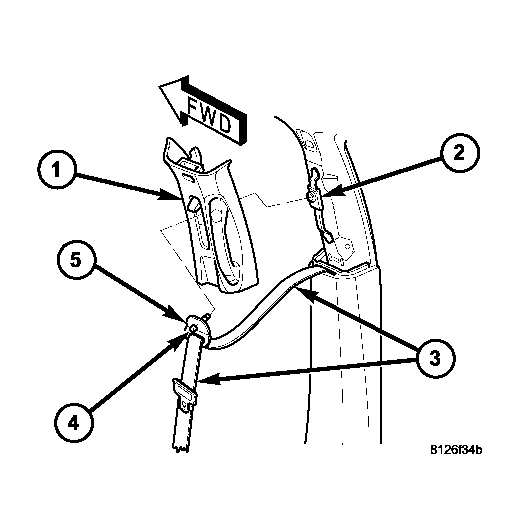

   Fig 2: Upper Trim

   Courtesy of DAIMLERCHRYSLER CORP.
3. Reinstall the upper trim (1) onto the inside of the B-pillar. Refer to PANEL-B PILLAR TRIM .
4. Position the seat belt turning loop (5) onto the height adjuster (2) on the upper B-pillar.
5. Install and tighten the screw (4) that secures the turning loop to the height adjuster. Tighten the screw to 39 N.m (29 ft. lbs.).

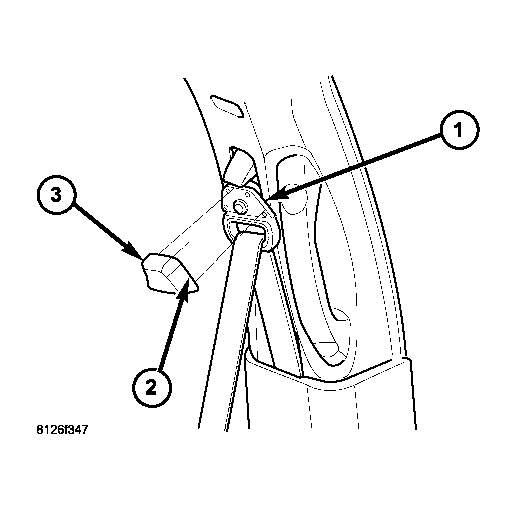

   Fig 3: Seat Belt Trim Cover

   Courtesy of DAIMLERCHRYSLER CORP.
6. Engage the tab (2) on the lower edge of the trim cover (3) in the slot below the screw in the turning loop (1). Then press the upper edge of the trim cover over the top of the turning loop until it snaps into place.
