Third Row Bench
WARNING:
To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

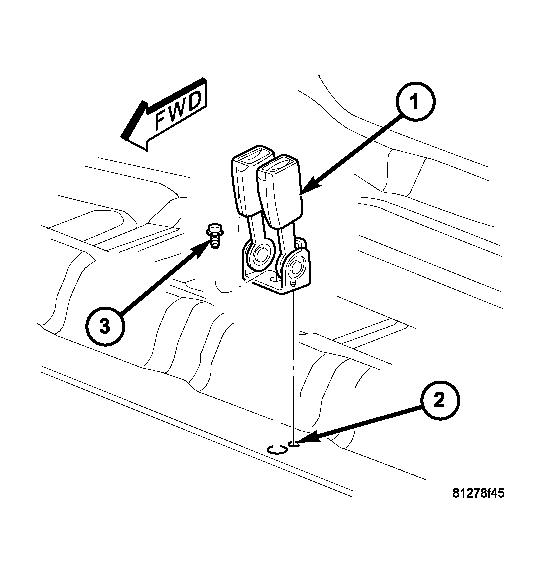

- Position the third row seat belt buckle and anchor bracket unit (1) to the rear floor panel. Be certain the anti-rotation tab on the anchor bracket is engaged in the clearance hole (2) in the floor.
- Install and tighten the screw (3) that secures the anchor bracket to the floor. Tighten the screw to 43 N.m (32 ft. lbs.).
- Restore the third row seat cushion to its seating position.
