O2 Sensor: Installation

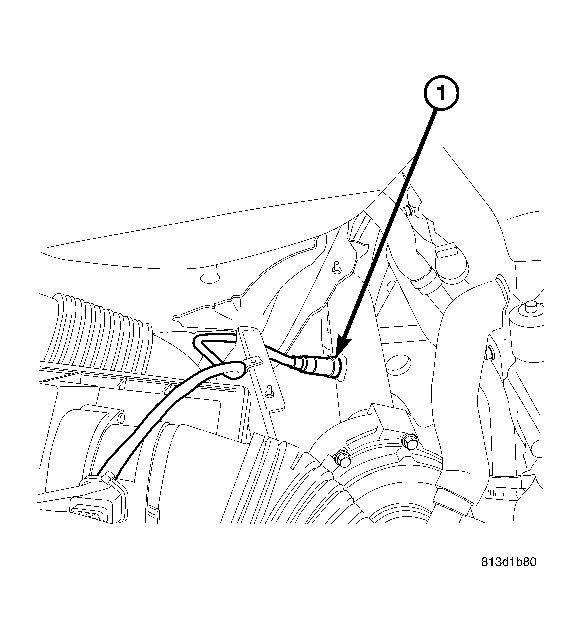

  1. Install the oxygen sensor. See Figure.

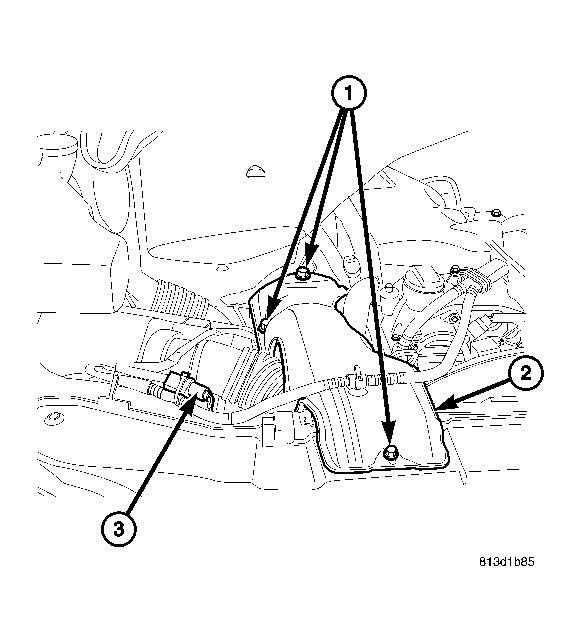

  2. Install the heatshield and tighten fasteners to 9N.m (80 lbs. in.). See Figure.
  3. Properly position the oxygen sensor wiring harness and connect the electrical connector. See Figure.
  4. Connect the negative battery cable.
