O2 Sensor And EGR Valve Location

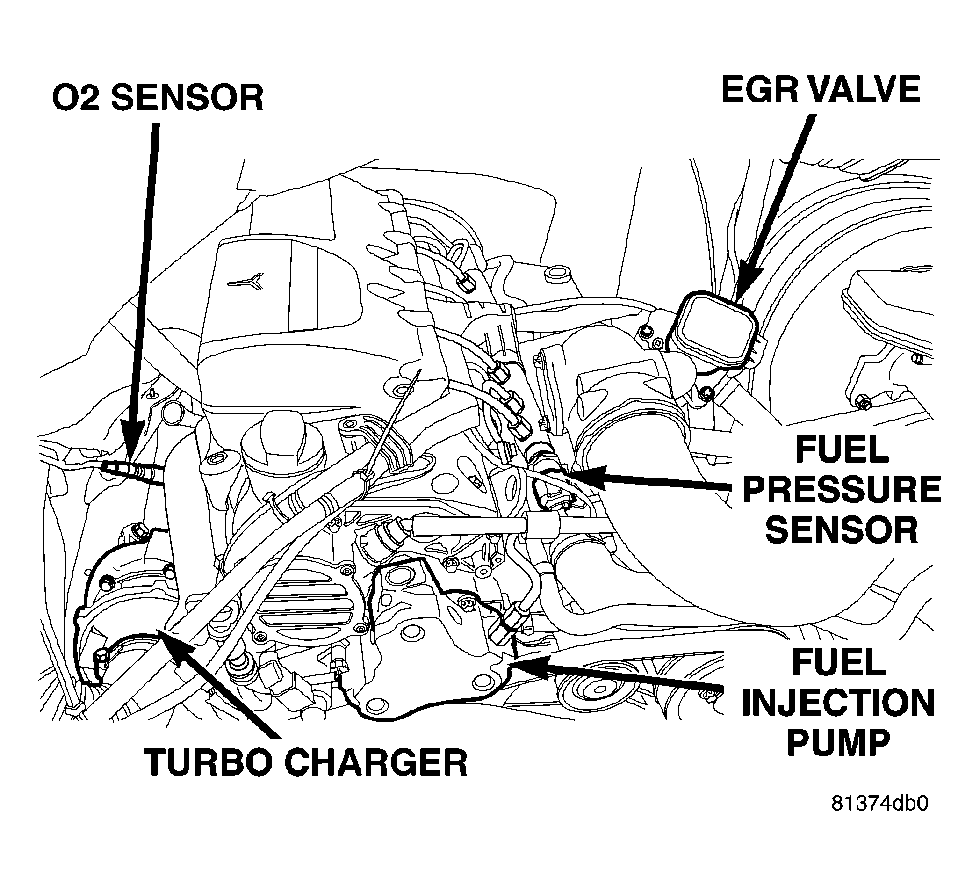

Fig 1: Identifying O2 Sensor And EGR Valve Location
Courtesy of CHRYSLER
Courtesy of CHRYSLER
