Engine Control Module C2 (OBD)

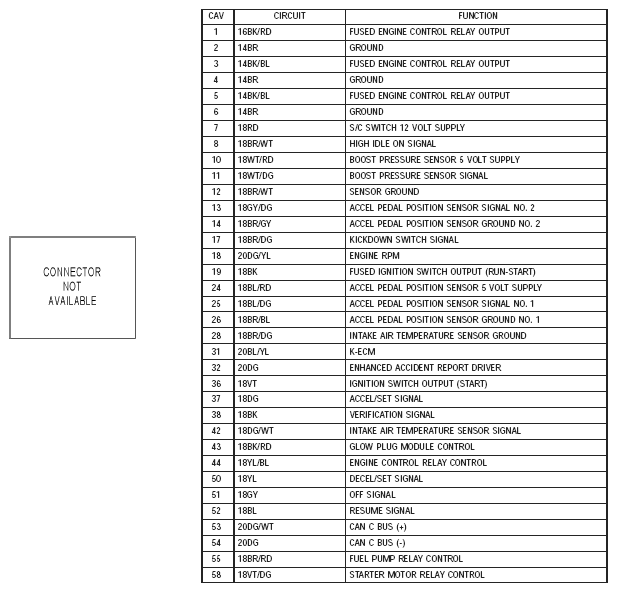

Fig 1: Identifying Engine Control Module C2 (OBD) Connector Pinouts
Courtesy of CHRYSLER
Courtesy of CHRYSLER
