Fuse/Relay Block

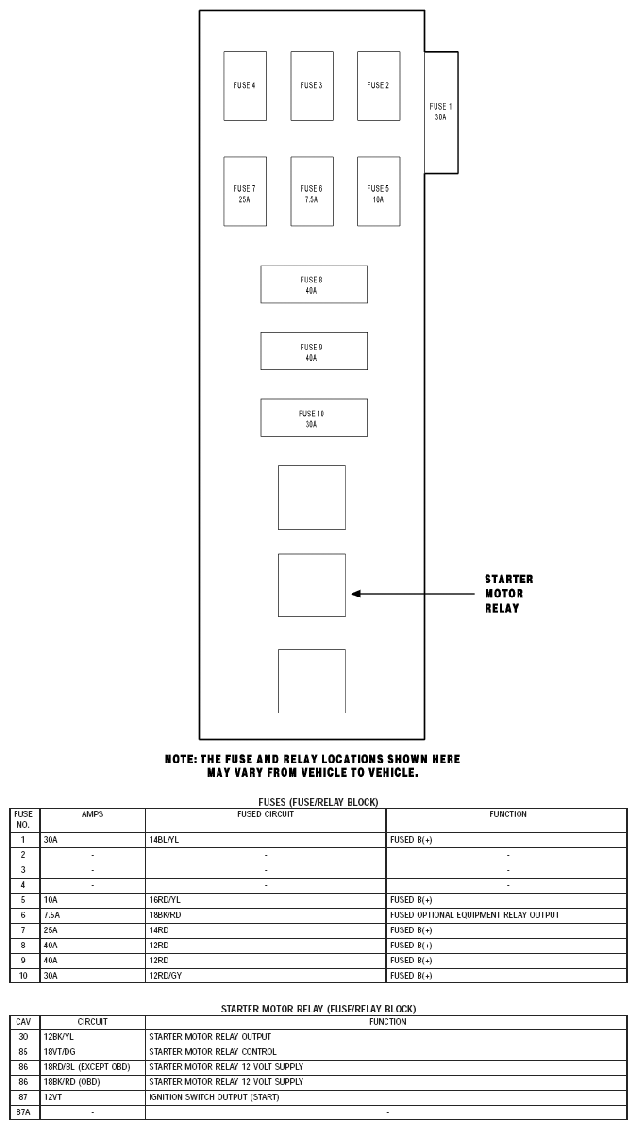

Fig 1: Identifying Fuse/Relay Block Connector Pinouts
Courtesy of CHRYSLER
Courtesy of CHRYSLER
