Speed Control Switch

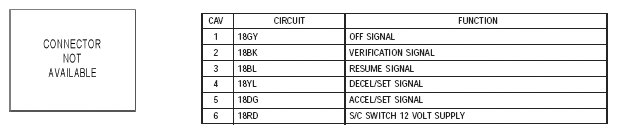

Fig 1: Identifying Speed Control Switch Connector Pinouts
Courtesy of CHRYSLER
Courtesy of CHRYSLER
