Fuel Injectors: Description

The fuel injectors are electrical solenoids. See Fig 1.

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.

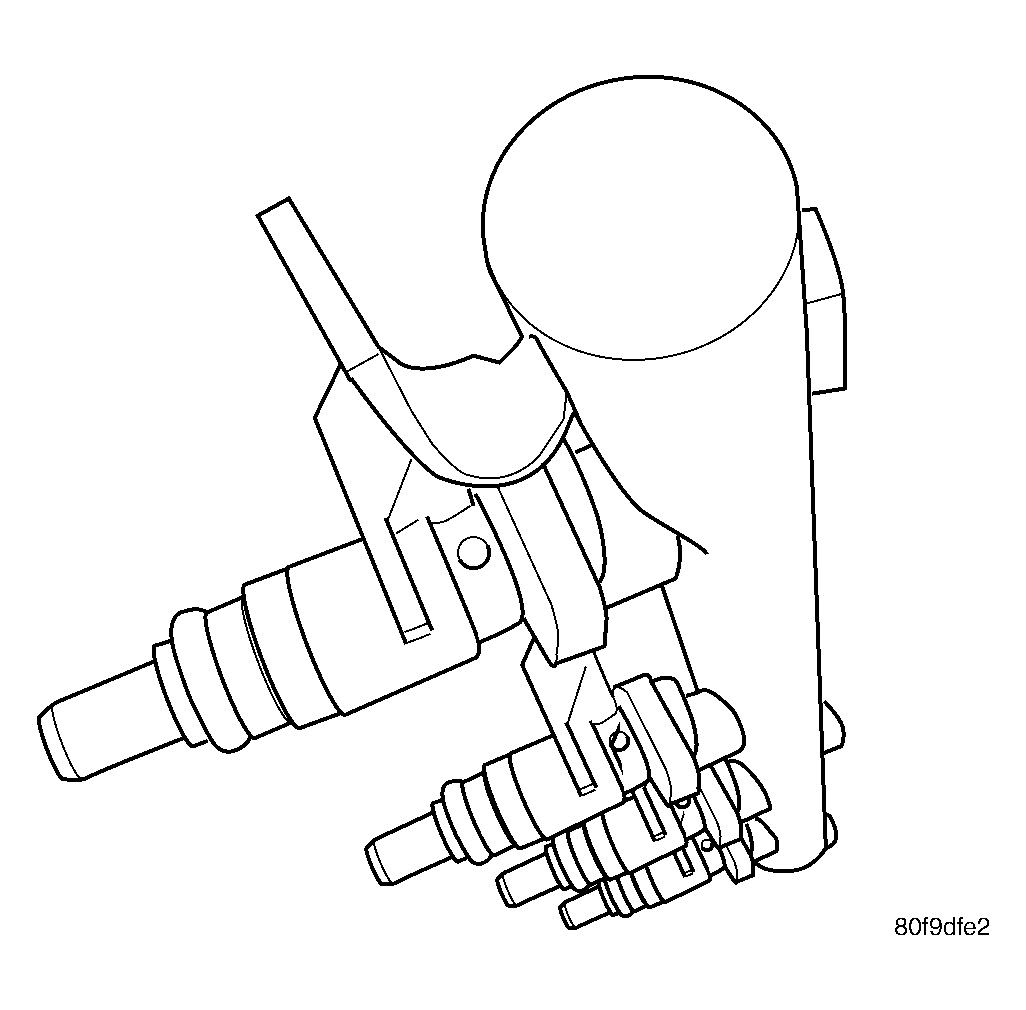

Fig 1: Fuel Injector & Clip

Courtesy of DAIMLERCHRYSLER CORP.
