Sensor-Fuel Level - Diesel

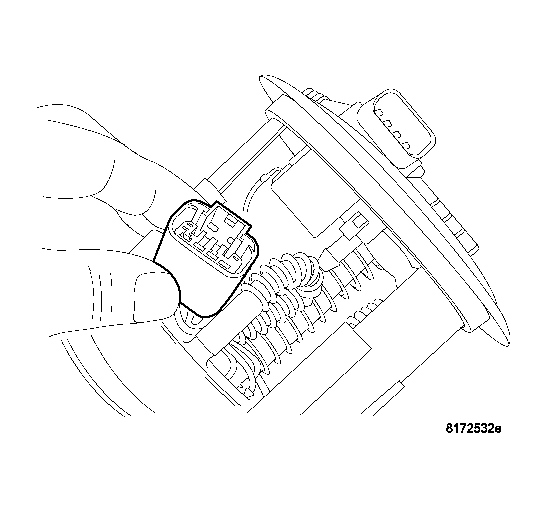

Fig 1: ELECT CONNECTOR LOCK RETAIN

Courtesy of CHRYSLER LLC

Remove fuel pump module. See REMOVAL .
Depress retaining tab and remove the fuel pump/level sensor connector from the BOTTOM of the fuel pump module electrical connector.
NOTE: The pump module harness on TOP of flange is not serviceable or removable.

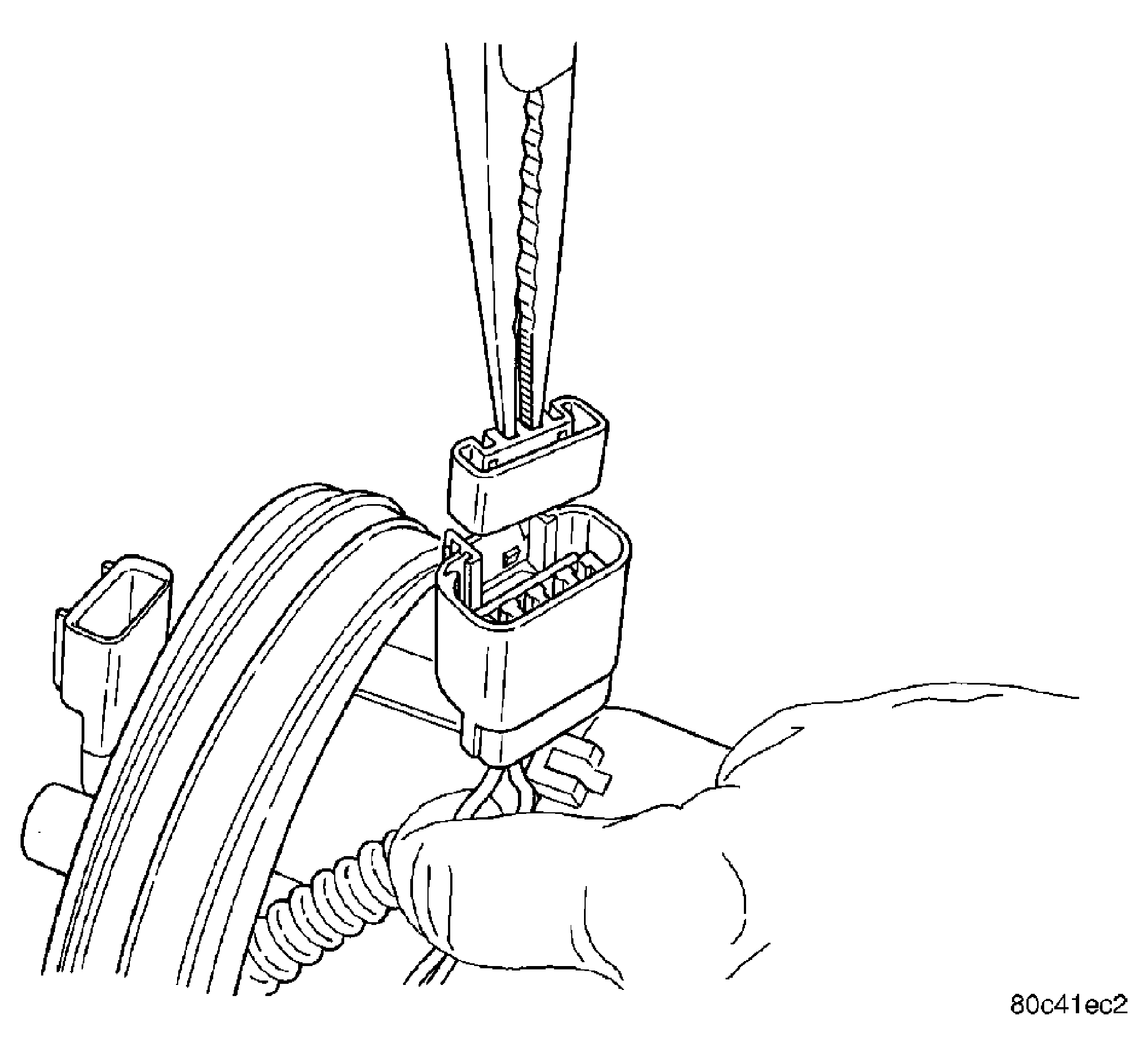

Fig 2: Wedge Lock
Courtesy of CHRYSLER LLC
Remove the wedge lock from the electrical connector.

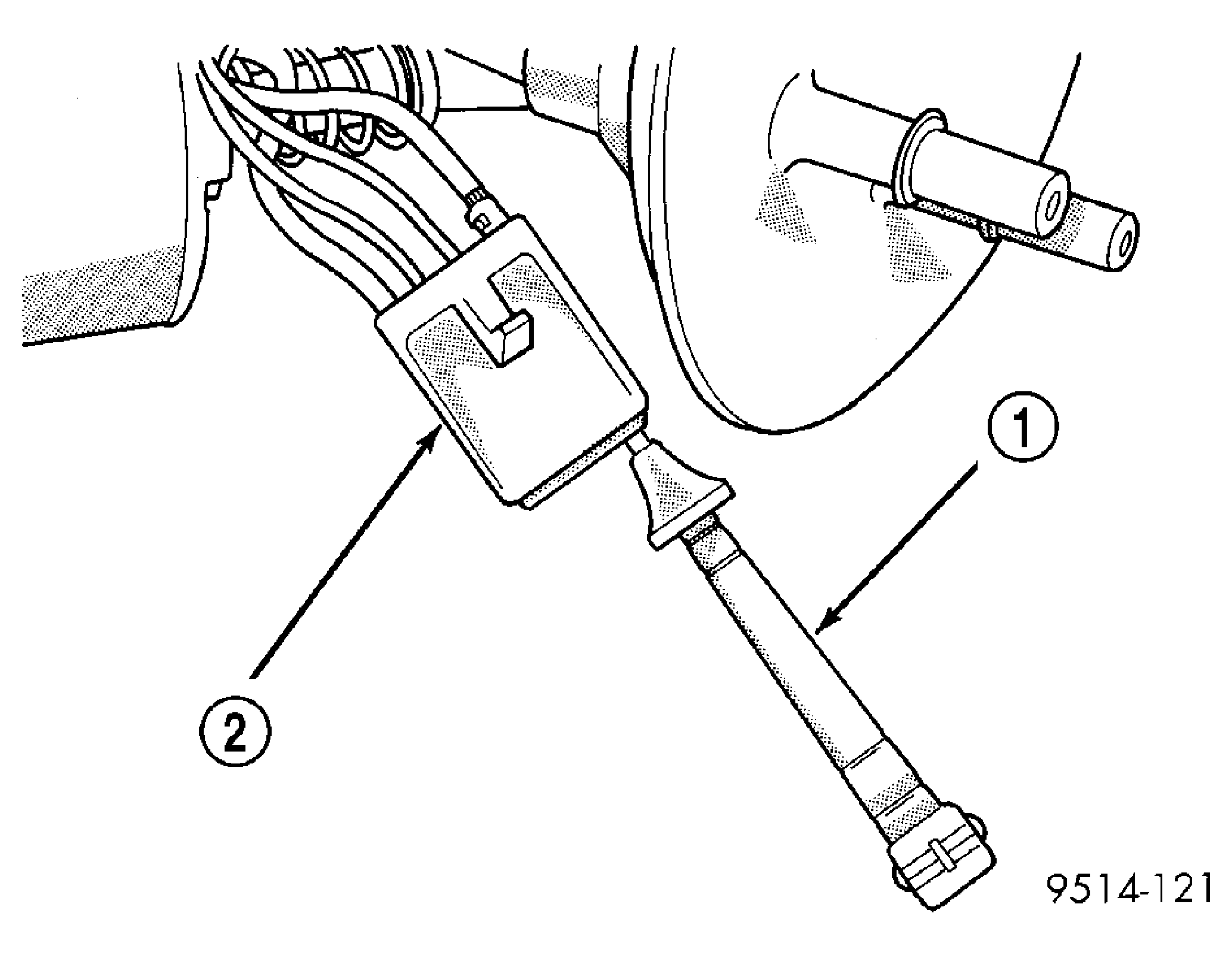

Fig 3: Terminal Removal Tool - Typical
Courtesy of CHRYSLER LLC

1 - TERMINAL REMOVAL TOOL

2 - FUEL LEVEL SENSOR CONNECTOR
Using Special Tool C-4334 (1) terminal remover or equivalent, remove terminals from level sensor connector (2).

Fig 4: Level Sensor
Courtesy of CHRYSLER LLC

1 - FUEL LEVER SENSOR

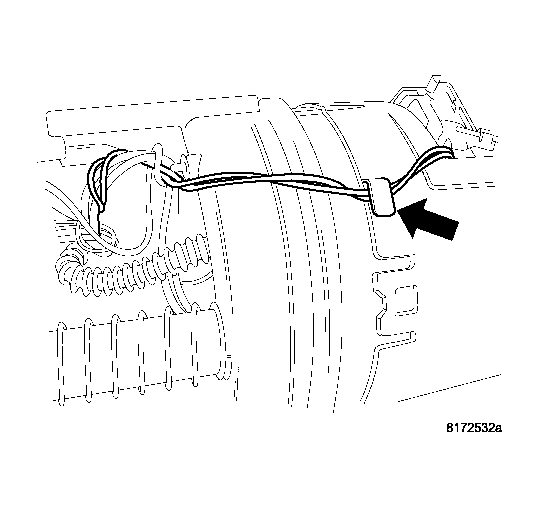

Remove wire from wire retainer.

Fig 5: Removing/Installing Level Card
Courtesy of CHRYSLER LLC

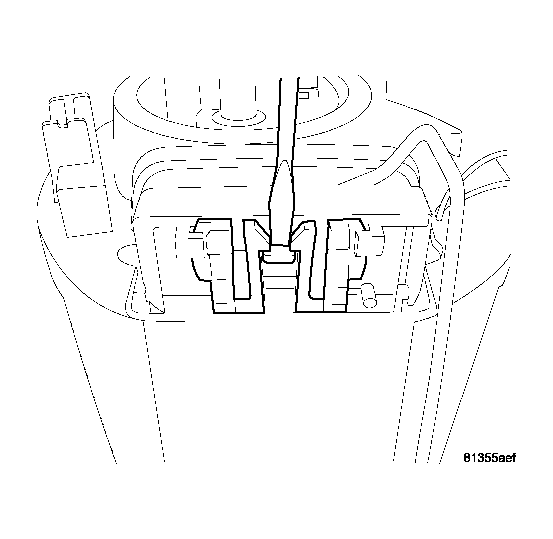

Fig 6: Releasing Tabs From Card
Courtesy of CHRYSLER LLC

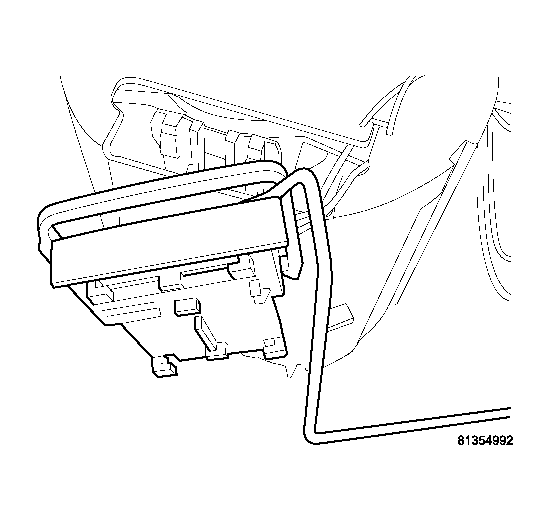

Fig 7: Remove Level Card
Courtesy of CHRYSLER LLC
Depress the tab and unlock the sender card.
Slide level sensor out of channel in module.
