Map Sensor: Installation

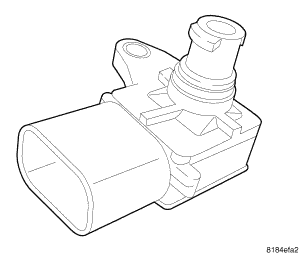

Fig 1: SENSOR-MAP
GC0055482Courtesy of CHRYSLER LLC
  1. Make sure that the manifold is clean.
  2. Install sensor to manifold.

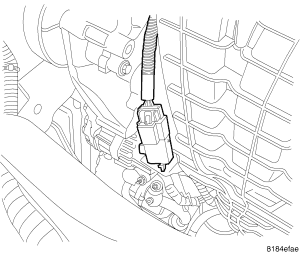

    Fig 2: SENSOR-MAP
    GC0055483Courtesy of CHRYSLER LLC
  3. Tighten screw.
  4. Connect the electrical connector to the sensor.
  5. Connect the negative battery cable.
  6. Install the air cleaner cover.
