Glow Plug: Installation

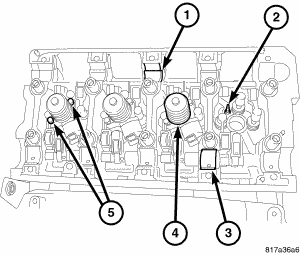

Fig 1: Glow Plugs
GC0053403Courtesy of CHRYSLER LLC
  1. Clean glow plug bay and install glow plug.
  2. Tighten glow plugs to 10 N.m (89 lbs. in.).
  3. Connect glow plug electrical connector.
  4. Install cylinder head cover. Refer to INSTALLATION .
  5. Install engine cover. Refer to INSTALLATION .
  6. Connect negative battery cable.
