Dodge and Ram
>>
2007
>>
Caliber R/T, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition Control - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B2122-Ignition Run Control 1 Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

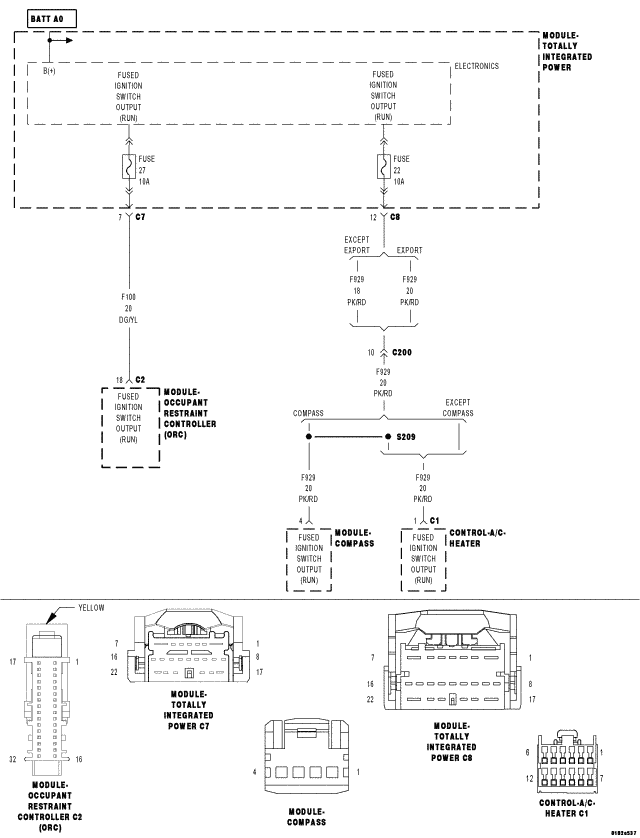

Fig 1: Ignition Run Control 1 Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
