Diagnostic Test

  1. 1) DTC IS ACTIVE

    Start the engine.

    Allow the engine to reach normal operating temperature.

    NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.

    With the scan tool, select View DTCs.

    Is the status Active for this DTC?

    Yes

    1. Go to step  2).

    No

    1. Refer to *CHECKING FOR AN INTERMITTENT CONDITION .
  2. 2) (K857) 5 VOLT SUPPLY CIRCUIT VOLTAGE

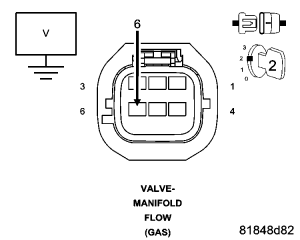

    Fig 1: Measuring Voltage Of The (K857) 5-Volt Supply Circuit
    GC0054050Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Manifold Flow Valve connector.

    Turn the ignition on.

    Measure the voltage of the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.

    Is the voltage between 4.5 and 5.5 volts?

    Yes

    1. Go to step  3).

    No

    1. Go to step  7).
  3. 3) (K602) MFV SIGNAL CIRCUIT VOLTAGE

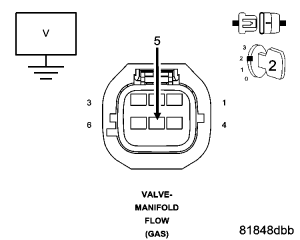

    Fig 2: Measuring Voltage Of (K602) MFV Signal Circuit In The Manifold Flow Valve Harness Connector
    GC0054051Courtesy of CHRYSLER LLC

    Measure the voltage of the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

    Is the voltage between 4.5 and 5.5 volts?

    Yes

    1. Go to step  4).

    No

    1. Go to step  11).
  4. 4) (K900) SENSOR GROUND CIRCUIT TEST

    Turn the ignition off.

    Using a 12 volt test light connected to 12 volts, check the (K900) Sensor Ground in the Manifold Flow Valve harness connector.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to step  5).

    No

    1. Go to step  15).
  5. 5) (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K602) MFV SIGNAL CIRCUIT

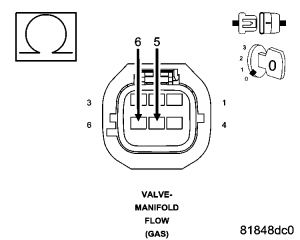

    Fig 3: Measuring Resistance Between (K602) MFV Signal Circuit And (K857) 5-Volt Supply In The Manifold Flow Valve Harness Connector
    GC0054052Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    Measure the resistance between the (K857) 5 Volt Supply circuit and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  6).

    No

    1. Repair the (K857) 5 Volt Supply circuit for a short to the (K602) MFV Signal circuit.
    2. Perform PCM VERIFICATION TEST .
  6. 6) MANIFOLD FLOW VALVE

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Inspect the Manifold Flow Valve for any condition that would result in an incorrect signal, such as damage or contamination.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform PCM VERIFICATION TEST .

    No

    1. Replace the Manifold Flow Valve.
    2. Perform PCM VERIFICATION TEST .
  7. 7) (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
    Fig 4: Measuring Voltage Of The (K857) 5-Volt Supply Circuit
    GC0054050Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    Turn the ignition on.

    Measure the voltage of the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (K857) 5 Volt Supply circuit for a short to voltage.
    2. Perform PCM VERIFICATION TEST .

    No

    1. Go to step  8).
  8. 8) (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

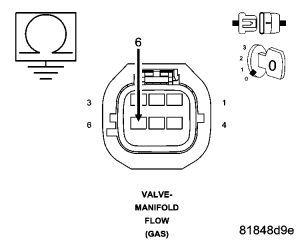

    Fig 5: Measuring Resistance Between Ground And (K857) 5-Volt Supply Circuit In The Manifold Flow Valve Harness Connector
    GC0054053Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  9).

    No

    1. Repair the (K857) 5 Volt Supply circuit for a short to ground.
    2. Perform PCM VERIFICATION TEST .
  9. 9) (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

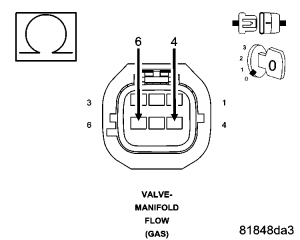

    Fig 6: Measuring Resistance Between (K857) 5-Volt Supply Circuit And (K900) Sensor Ground Circuit In The Manifold Flow Valve Harness Connector
    GC0054054Courtesy of CHRYSLER LLC

    Measure the resistance between the (K857) 5 Volt Supply circuit and the (K900) Sensor Ground circuit in the Manifold Flow Valve harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  10).

    No

    1. Repair the (K857) 5 Volt Supply circuit for a short to the (K900) Sensor Ground circuit.
    2. Perform PCM VERIFICATION TEST .
  10. 10) (K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

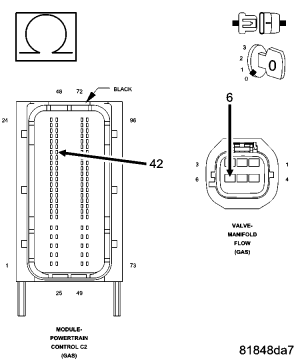

    Fig 7: Measuring Resistance Of (K857) 5-Volt Supply Circuit Between Manifold Flow Valve Harness Connector And PCM Harness Connector
    GC0054055Courtesy of CHRYSLER LLC

    Measure the resistance of the (K857) 5 Volt Supply circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to step  16).

    No

    1. Repair the (K857) 5 Volt Supply circuit for an open circuit or high resistance.
    2. Perform PCM VERIFICATION TEST .
  11. 11) (K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE
    Fig 8: Measuring Voltage Of (K602) MFV Signal Circuit In The Manifold Flow Valve Harness Connector
    GC0054051Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    Turn the ignition on.

    Measure the voltage of the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (K602) MFV Signal circuit for a short to voltage.
    2. Perform PCM VERIFICATION TEST .

    No

    1. Go to step  12).
  12. 12) (K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND

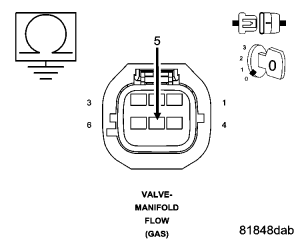

    Fig 9: Measuring Resistance Between Ground And (K602) MFV Signal Circuit In The Manifold Flow Valve Harness Connector
    GC0054056Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  13).

    No

    1. Repair the (K602) MFV Signal circuit for a short to ground.
    2. Perform PCM VERIFICATION TEST .
  13. 13) (K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT

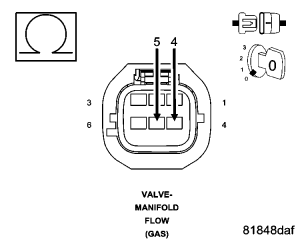

    Fig 10: Measuring Resistance Between (K602) MFV Signal Circuit And (K900) Sensor Ground Circuit In The Manifold Flow Valve Harness Connector
    GC0054057Courtesy of CHRYSLER LLC

    Measure the resistance between the (K602) MFV Signal circuit and the (K900) Sensor Ground circuit in the Manifold Flow Valve harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  14).

    No

    1. Repair the (K602) MFV Signal circuit for a short to the (K900) Sensor Ground circuit.
    2. Perform PCM VERIFICATION TEST .
  14. 14) (K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

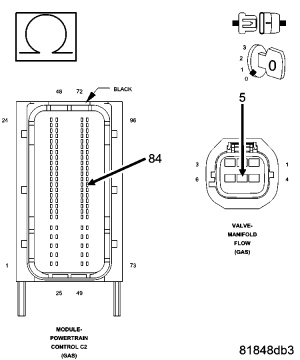

    Fig 11: Measuring Resistance Of (K602) MFV Signal Circuit Between Manifold Flow Valve Harness Connector And PCM Harness Connector
    GC0054058Courtesy of CHRYSLER LLC

    Measure the resistance of the (K602) MFV Signal circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to step  16).

    No

    1. Repair the (K602) MFV Signal circuit for an open circuit or high resistance.
    2. Perform PCM VERIFICATION TEST .
  15. 15) (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

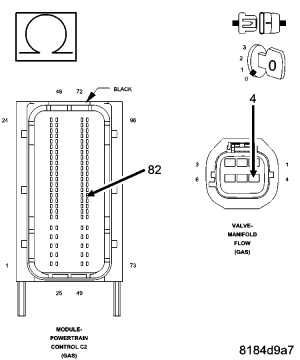

    Fig 12: Measuring Resistance Of (K900) Sensor Ground Circuit Between Manifold Flow Valve Harness Connector And The PCM Harness Connector
    GC0054059Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    Measure the resistance of the (K900) Sensor Ground circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to step  16).

    No

    1. Repair the circuit for an open circuit or high resistance.
    2. Perform PCM VERIFICATION TEST .
  16. 16) POWERTRAIN CONTROL MODULE (PCM)

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

    Look for the data to change or for the DTC to reset during the wiggle test.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform PCM VERIFICATION TEST .

    No

    1. Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
    2. Perform PCM VERIFICATION TEST .
