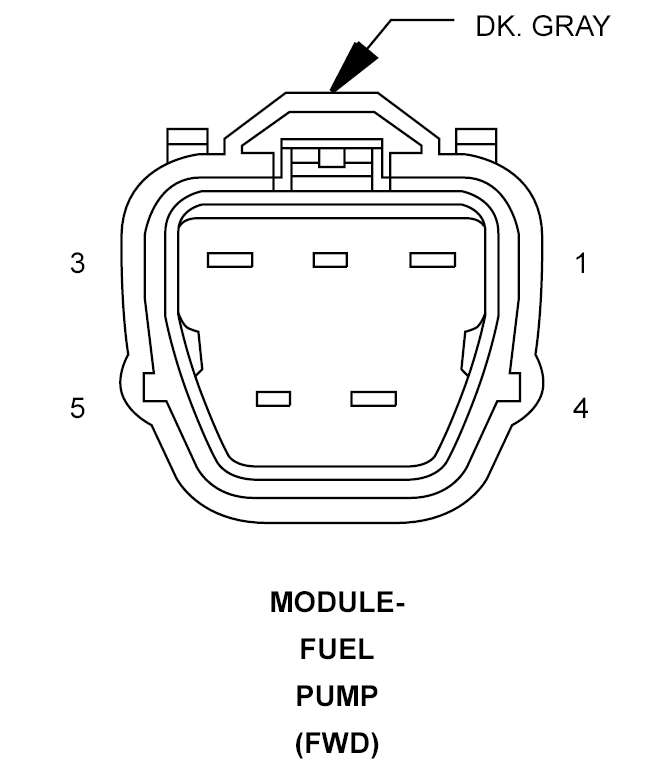

Fuel Pump Module (FWD) Connector End View
MODULE-FUEL PUMP - DK. GRAY 5-WAY (FWD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z965 16BK/GY |
GROUND |
| 2 |
N4 20DB/WT |
FUEL LEVEL SIGNAL 1 |
| 3 |
- |
- |
| 4 |
Z964 16BK/WT |
GROUND (CVT) |
| 4 |
Z964 16BK |
GROUND (MTX) |
| 5 |
N1 16DB/OR |
FUEL PUMP CONTROL OUTPUT |
