Latch-Rear Center Seat Belt Anchor

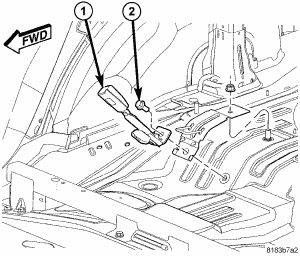

Fig 1: 2ND ROW RIGHT BUCKLE/CENTER BELT ANCHOR
GC0057036Courtesy of CHRYSLER LLC
  1. Position the right buckle/center seatbelt anchor latch (1) in the vehicle.
  2. Install the right buckle/center seatbelt anchor latch retaining bolt (2). Tighten bolt to 56 N.m (41.5 ft. lbs.).
  3. Install the rear seat cushion. Refer to INSTALLATION .
