Buckle-Rear Seat Belt

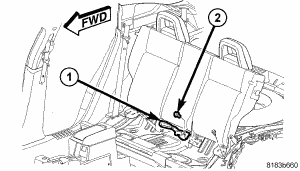

Fig 1: 2ND ROW LEFT/CTR BUCKLE R/I
GC0057035Courtesy of CHRYSLER LLC
  1. Remove the rear seat cushion. Refer to REMOVAL .
  2. Remove the left and center seatbelt buckle retaining bolt (2).
  3. Remove the left and center seatbelt buckle (1) from the vehicle.
