Sensor-B-Pillar Side Impact

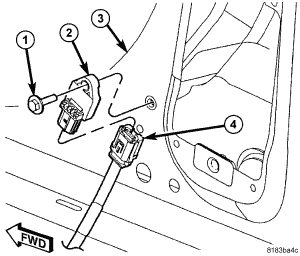

Fig 1: B-PILLAR SIDE IMPACT SENSOR
GC0053699Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
    WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components.
  2. Remove the B-pillar lower trim panel. Refer to REMOVAL .
  3. Disconnect the harness connector (4) from the sensor (2).
  4. Remove the screw (1) retaining the B-pillar side impact sensor (2)
  5. Remove the sensor (2) from the vehicle.
