Sensor-Front Impact

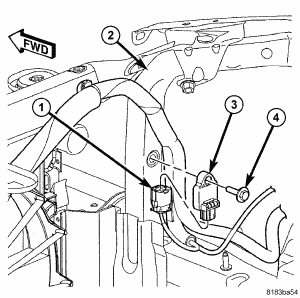

Fig 1: FRONT SAS R/I
GC0053698Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
    WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components.
  2. Remove the screw (4) that secures the right or left front impact sensor (3) to the back of the right or left radiator support vertical member (2).
  3. Disconnect the connector (1) from the sensor (3).
  4. Remove the right or left front impact sensor from the engine compartment.
