Module-Steering Column Control: Installation: SCCM

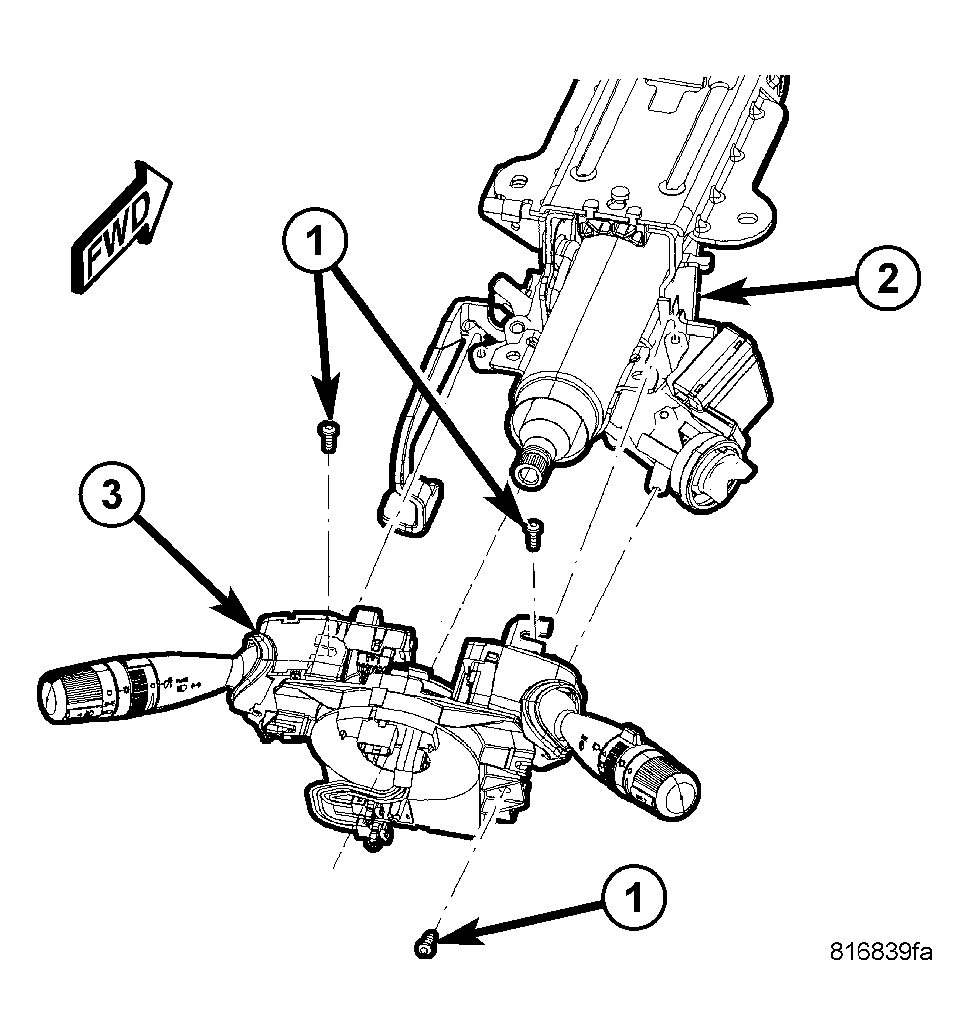

Fig 1: Multi-Function Switch Mounting

Courtesy of CHRYSLER LLC

1. Position the SCCM (3) over the steering column shaft (2).
2. Install the three screws (1).

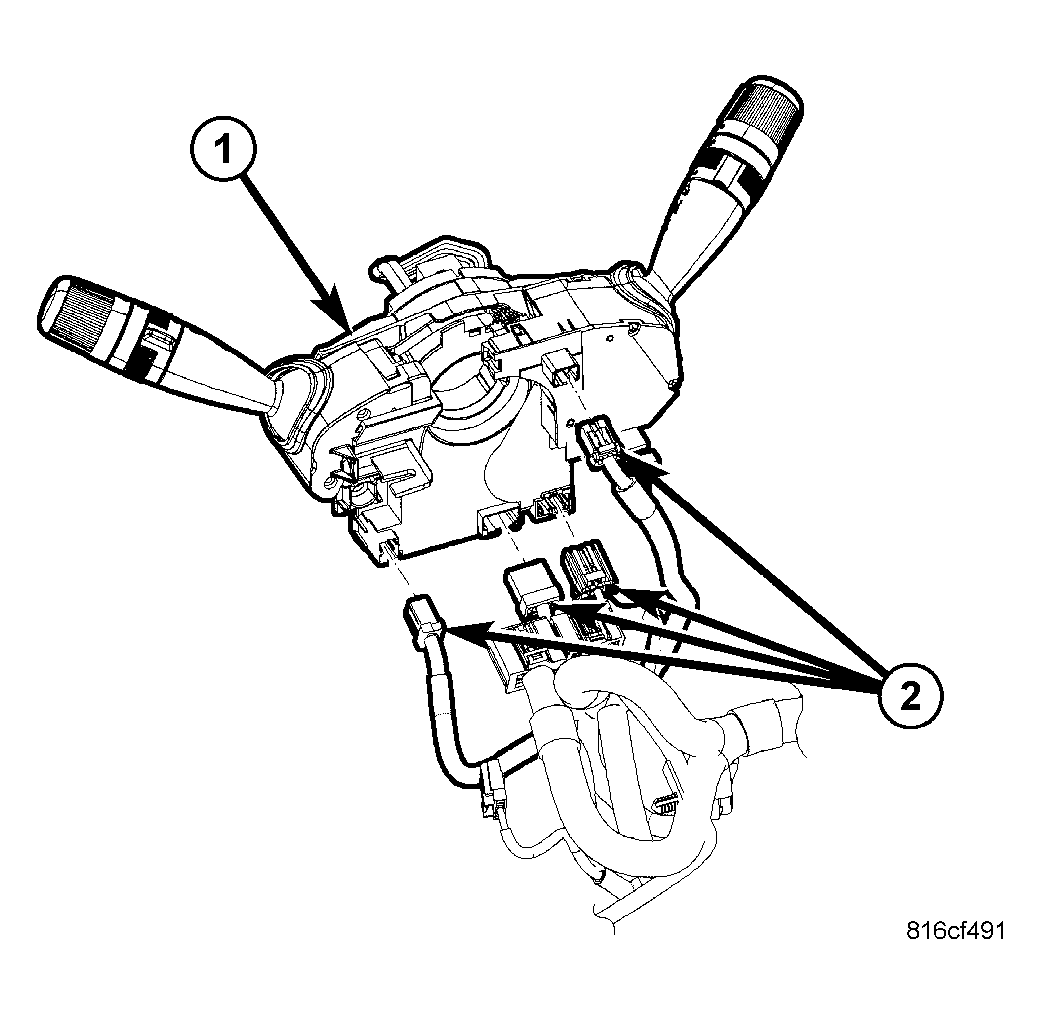

   Fig 2: SCM ELECTRICAL CONNECTORS

   Courtesy of CHRYSLER LLC
3. Connect the electrical connectors (2) to the instrument panel harness, ensure wiring is properly routed. Then check that the connectors, locking tabs are properly engaged.
4. Install steering column shrouds. See INSTALLATION . Be sure all wires are inside of shrouds.
5. Install steering wheel ensuring the flats on hub align with the clockspring. See INSTALLATION . Pull the airbag leads through the larger slot. Ensure leads do not get pinched under the steering wheel.
   NOTE: There is a small wire harness in the steering wheel and it contains the horn circuits and speed control circuits.
6. Connect the speed control and horn wire connector into the clockspring.
7. Pull the grenade pin out of the clockspring.
8. Install the driver airbag. Refer to INSTALLATION .

WARNING: Do not connect the battery negative cable. Refer to DIAGNOSIS AND TESTING . Personal injury or death may result if the system test is not performed first.
