Module-Steering Column Control: Removal: Disassembly

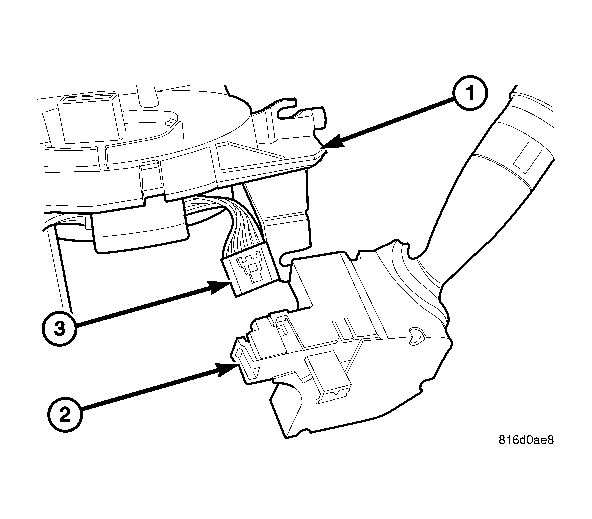

Fig 1: Multi-Function Switch Removal/Installation

Courtesy of CHRYSLER LLC

1. Remove the left multi-function switch stalk retaining screw (2).
2. Pull the left stalk out of the SCCM.

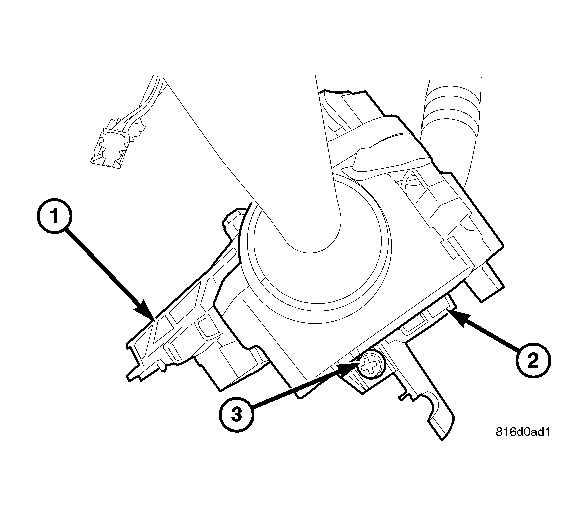

   Fig 2: LEFT - STALK ELECTRICAL CONNECTOR

   Courtesy of CHRYSLER LLC
3. Disconnect the left stalk electrical connector.
4. Separate the left switch from the SCCM.

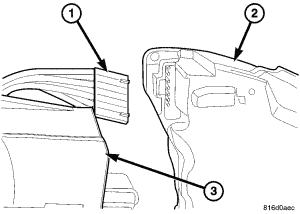

   Fig 3: RIGHT - STALK RETAINING SCREW

   Courtesy of CHRYSLER LLC
5. Remove the one right multi-function switch retaining screw.
6. Pull right switch out of SCCM.

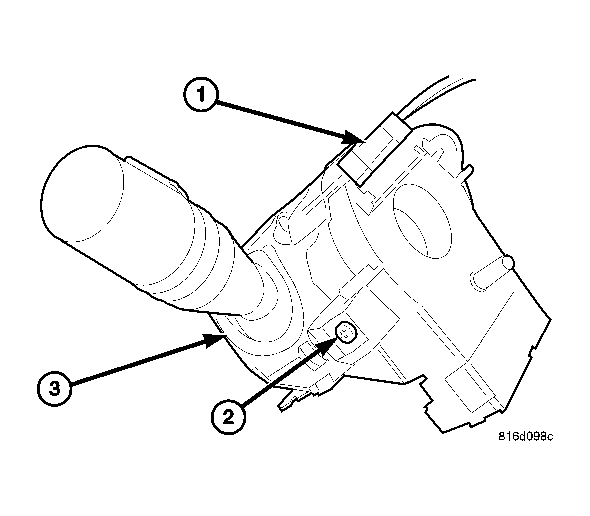

   Fig 4: RIGHT - STALK ELECTRICAL CONNECTOR

   Courtesy of CHRYSLER LLC
7. Disconnect the right switch electrical connector.
