Steering Column

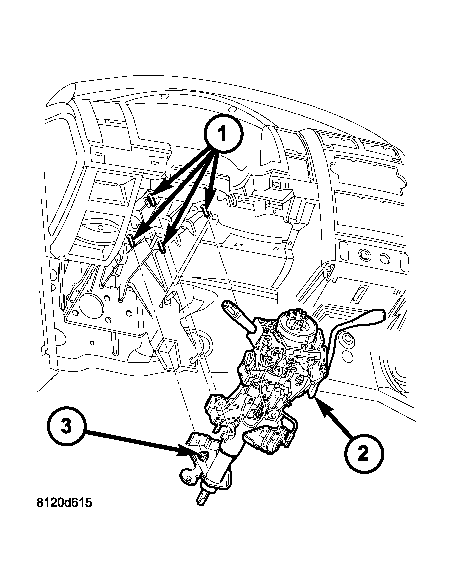

Fig 1: Steering Column Nuts & Assembly
GC0010477Courtesy of CHRYSLER LLC
WARNING: BEFORE SERVICING THE STEERING COLUMN THE AIRBAG SYSTEM MUST BE DISARMED. REFER TO RESTRAINTS - ELECTRICAL DIAGNOSTICS ARTICLE FOR SERVICE PROCEDURES. FAILURE TO DO SO MAY RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY.
CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.
  1. Position the steering column (2) on the dash panel support (1) and loosely install the mounting nuts (3).
  2. Firmly slide the steering column (2) upward against the studs (1) in dash panel and hand tighten the nuts (3).
  3. Install the steering shaft coupler on the steering shaft and loosely install a new  bolt.
  4. Center steering column (2) in dash opening and tighten mounting nuts (3) to 28 N.m (250 in. lbs.).
    NOTE: Torque the upper left nut first then the lower right nut. Then torque the lower left nut then the upper right nut.
    NOTE: A new bolt must be used for reinstallation.
  5. Tighten the coupler bolt to 38 N.m (28 ft. lbs.).

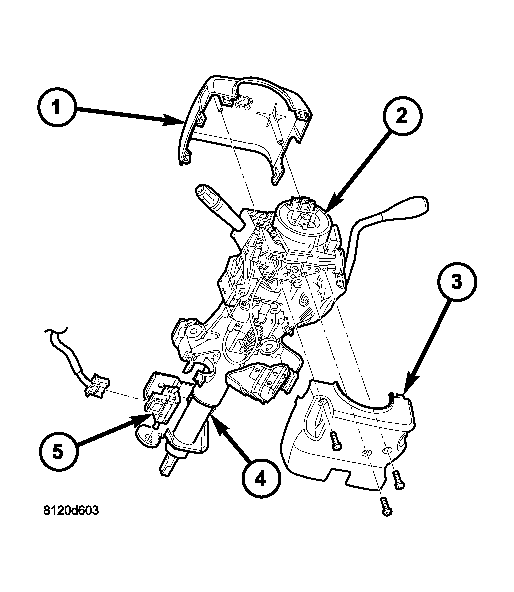

    Fig 2: Identifying Steering Column Shrouds
    GC0010465Courtesy of CHRYSLER LLC
  6. Install a new brake light switch (5). Refer to INSTALLATION .
  7. Install the shifter cable. Refer to INSTALLATION .

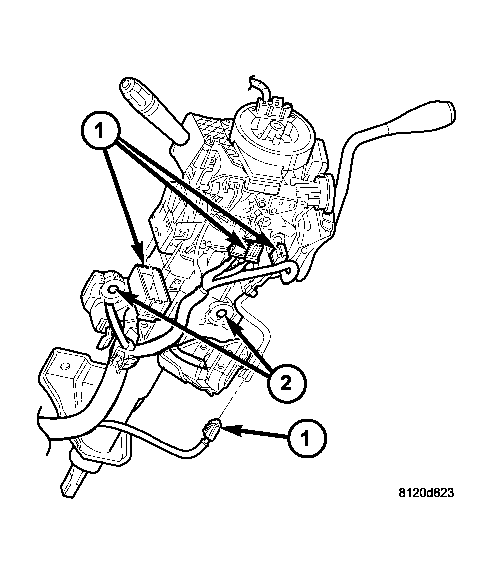

    Fig 3: Locating Steering Column Wiring & Fasteners
    GC0010476Courtesy of CHRYSLER LLC
  8. Connect the wiring harness (1) to the column (2).
  9. Install the SKIM module.
  10. Install the clockspring. Refer to INSTALLATION .
    Fig 4: Identifying Steering Column Shrouds
    GC0010465Courtesy of CHRYSLER LLC
  11. Install the shrouds (1&3).

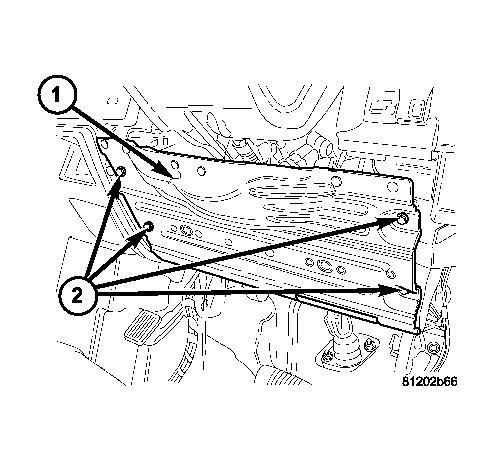

    Fig 5: Locating Steering Column Opening Reinforcement Mounting Bolts
    GC0010458Courtesy of CHRYSLER LLC
  12. Install the steering column opening reinforcement (1).

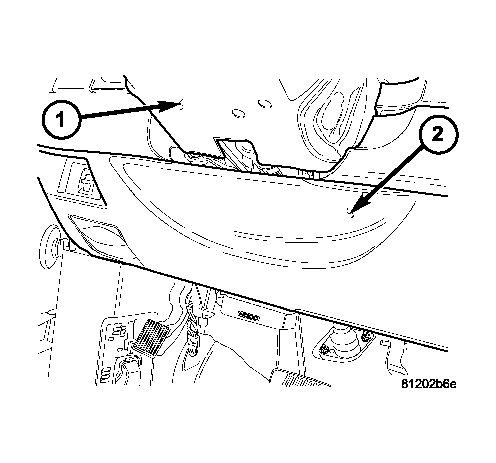

    Fig 6: Locating Steering Column Opening Cover
    GC0010460Courtesy of CHRYSLER LLC
  13. Install the steering column opening cover (2). Refer to INSTALLATION .

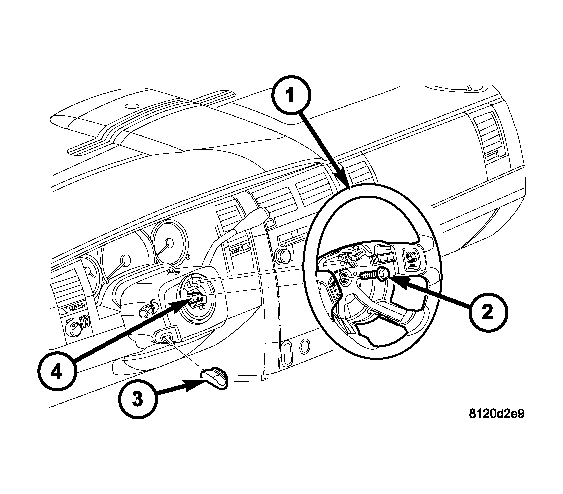

    Fig 7: Removing/Installing Steering Wheel & Bolt
    GC0010469Courtesy of CHRYSLER LLC
  14. Align the spline on the steering wheel hub to shaft (4).
  15. Then install the steering wheel (1) and install a new  bolt (2). Tighten the bolt to 61 N.m (45 ft. lbs.).
  16. Install the airbag. Refer to INSTALLATION .
  17. Install the tilt lever handle.
  18. Install the negative battery terminal.
  19. Test the operation of the horn, Electronic PRNDL Indicator, lights and any other functions that are steering column operated.
