Lower Steering Shaft Coupler

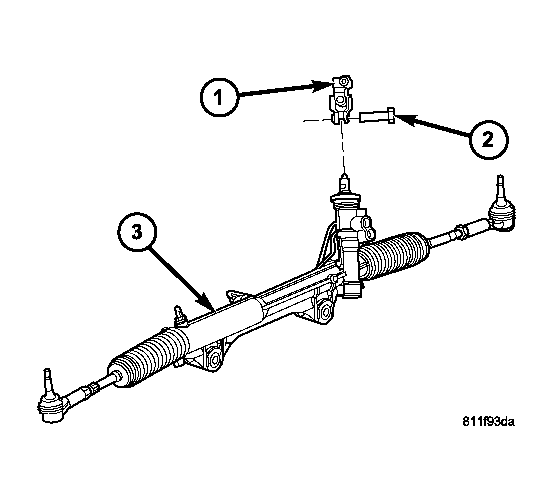

Fig 1: Upper Coupler & Pinch Bolt
GC0010472Courtesy of CHRYSLER LLC
  1. Install the coupling (1) to the steering gear (3).
    Fig 2: Coupling Shaft & Pinch Bolt
    GC0010471Courtesy of CHRYSLER LLC
  2. Install the other end of the coupling (2) to the steering shaft (1).
    NOTE: New pinch bolts must be used for reinstallation.
  3. Install the mid point pinch bolt (3) and tighten to 38 N.m (28 ft. lbs.).
    Fig 3: Upper Coupler & Pinch Bolt
    GC0010472Courtesy of CHRYSLER LLC
  4. Install the lower pinch bolt (2) and tighten to 38 N.m (28 ft. lbs.).
  5. Lower the vehicle.
  6. Reconnect the negative battery cable.
  7. Unlock the steering wheel.
