Ignition Switch

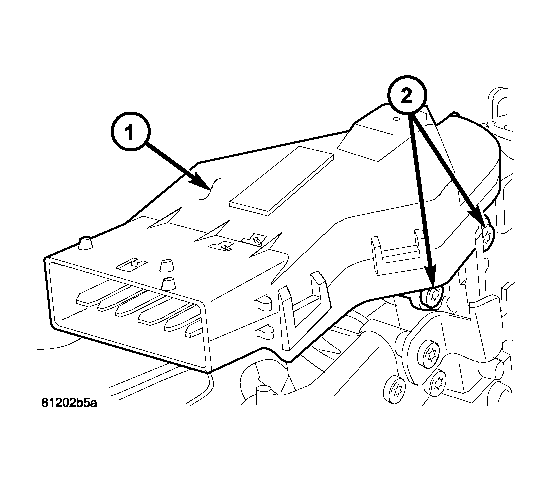

Fig 1: Ignition Switch & Screws
GC0010456Courtesy of CHRYSLER LLC
  1. Before installing ignition switch (1), rotate the slot in the switch to the ON position.
  2. Connect the electrical connector to rear of the ignition switch. Make sure that locking tabs are fully seated into wiring connector.
  3. Position switch to column and install the mounting screws (2). Tighten screw to 3 N.m (26 in. lbs.).

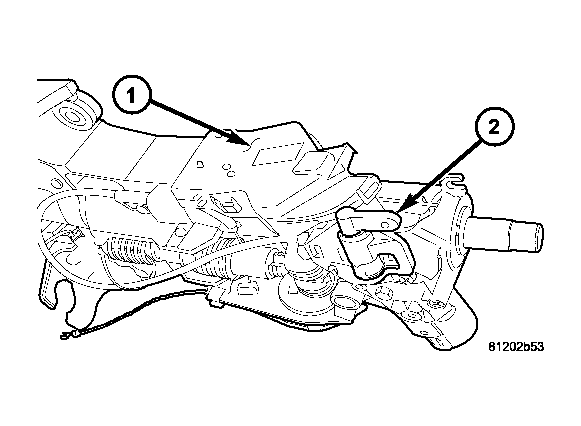

    Fig 2: Ignition Switch & Bracket
    GC0010455Courtesy of CHRYSLER LLC
  4. Install the tilt lever bracket (2) mounting screws. Tighten screws to 4.5 N.m (40 in. lbs.).
  5. Position the wire retainer into the tilt lever bracket.
  6. Reconnect the lower clockspring connectors.
    Fig 3: Locating Steering Column Opening Reinforcement Mounting Bolts
    GC0010458Courtesy of CHRYSLER LLC
  7. Install the steering column opening reinforcement (1).
    Fig 4: Locating Steering Column Opening Cover
    GC0010460Courtesy of CHRYSLER LLC
  8. Install the steering column opening cover (2).

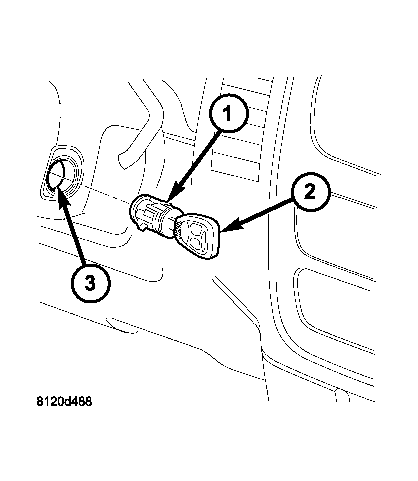

    Fig 5: Installing Key Cylinder With Key In Cylinder
    GC0010463Courtesy of CHRYSLER LLC
  9. Install the key cylinder (1) with the key (2) in the cylinder (1).

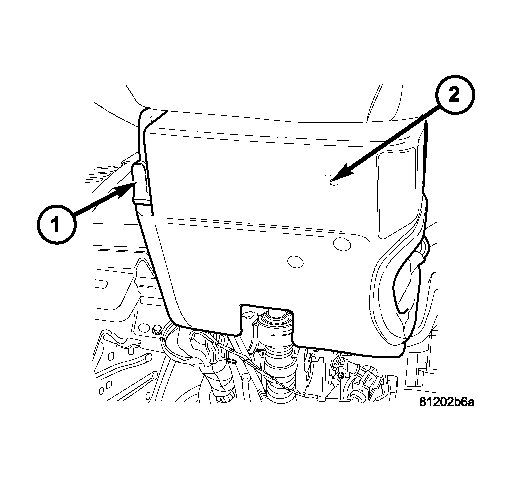

    Fig 6: Tilt Lever Knob & Shrouds
    GC0010459Courtesy of CHRYSLER LLC
  10. Install steering column upper and lower shrouds (2).
  11. Install the tilt lever knob (1).
  12. Enable the airbag system. Refer to INSTALLATION .
