Module-Inverter

Component ID: 194
Component : MODULE-INVERTER

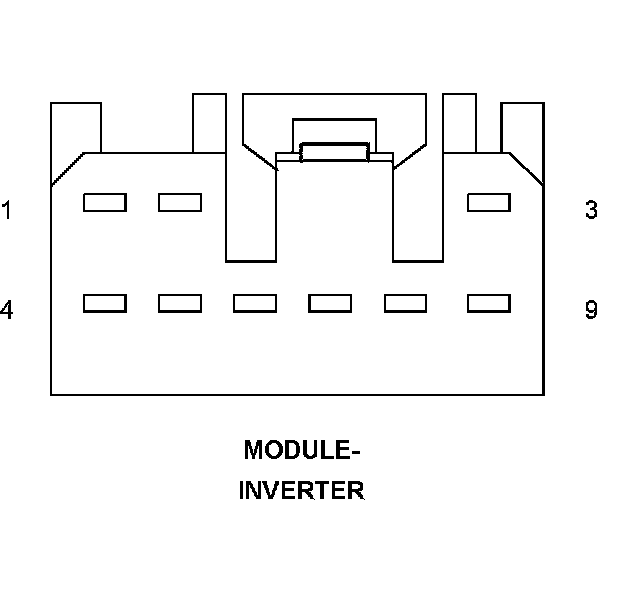

Connector:
Name : MODULE-INVERTER
Color :
# of pins : 9
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A904 16RD
2 INVERTER STATUS INDICATOR DRIVER P806 18LG/WT
3 110 VOLT AC LINE 1 P801 18LG
4 GROUND Z917 16BK
5 INVERTER ENABLE SWITCH SIGNAL P805 18LG/LB
6 - -
7 - -
8 110 VOLT AC LINE 2 P802 18LG/OR
9 - -

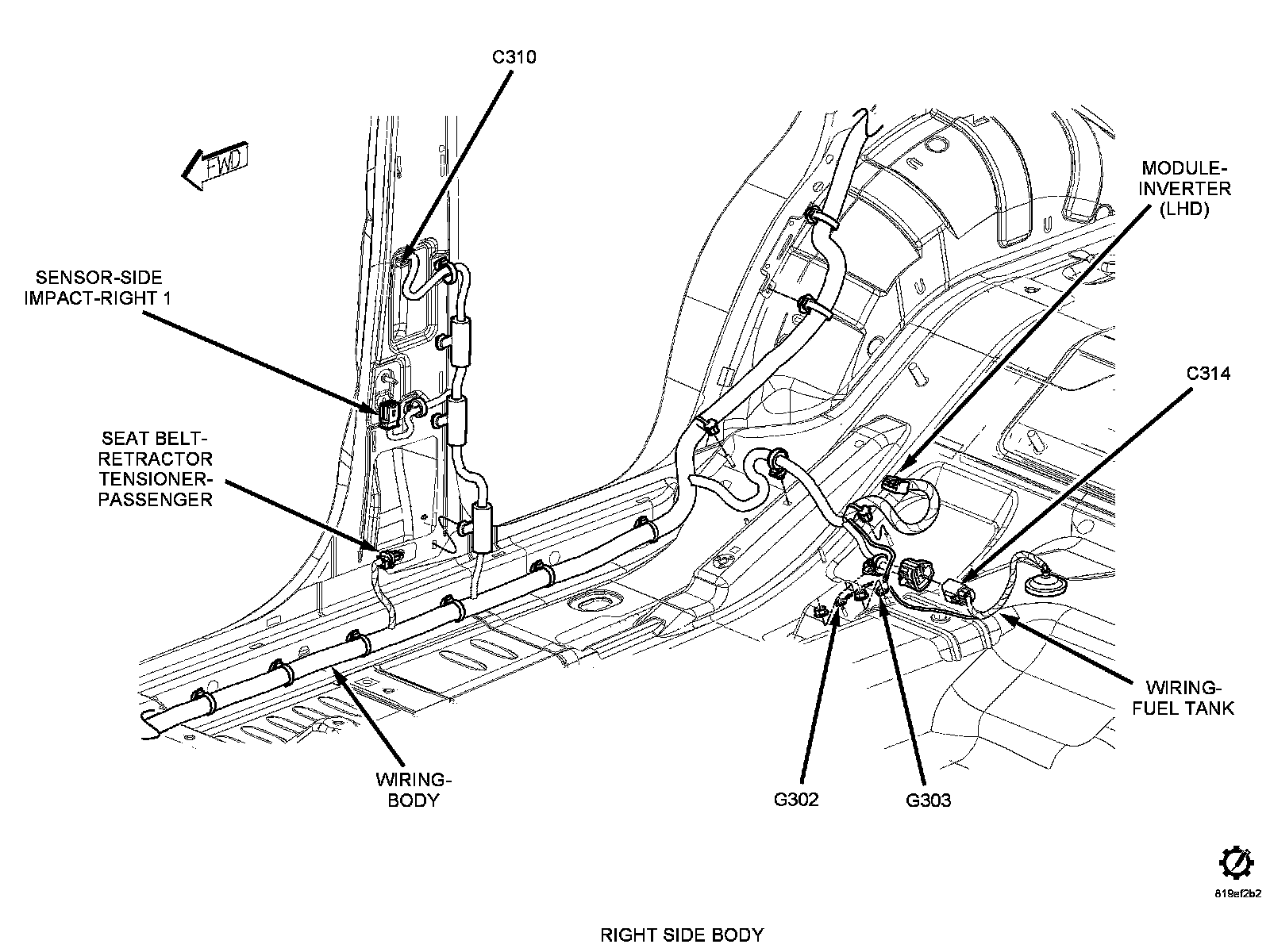

Component Location - 56
