Lamp-Reading-Front

Component ID: 166
Component : LAMP-READING-FRONT

Connector:
Name : LAMP-READING-FRONT
Color : BLACK
# of pins : 3




A READING/RAIL LAMPS DRIVER M27 20YL/LB
B GROUND Z919 20BK/DB
C COURTESY LAMPS DRIVER M24 20YL/WT

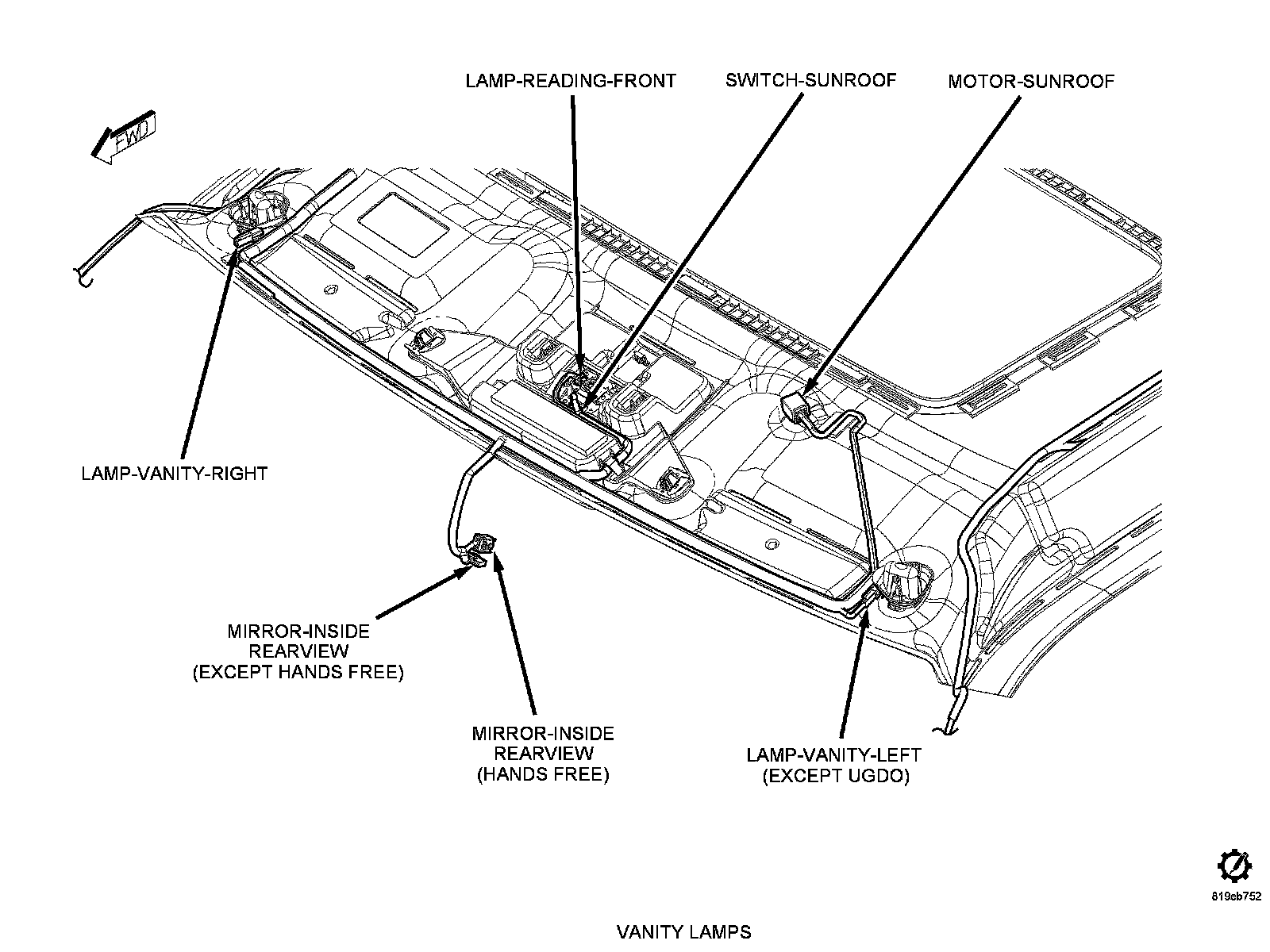

Component Location - 35
