Motor-Wiper-Rear

Component ID: 219
Component : MOTOR-WIPER-REAR

Connector:
Name : MOTOR-WIPER-REAR
Color : BLACK
# of pins : 3




Pin Description Circuit
1 REAR WIPER MOTOR CONTROL W13 16BR/LG
2 REAR WIPER PARK SWITCH SENSE W17 20BR/DB
3 GROUND Z920 16BK/LG

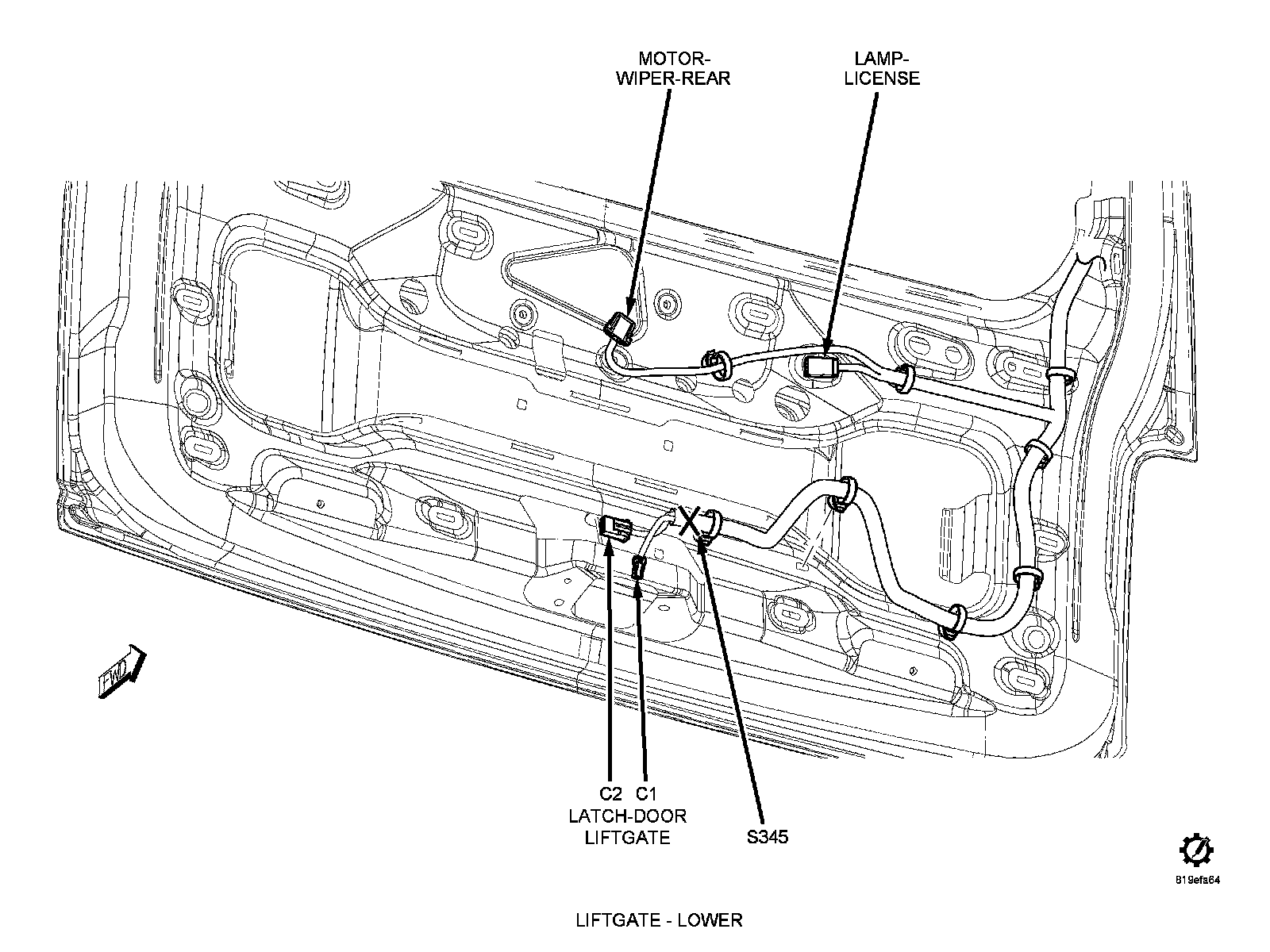

Component Location - 67
