Installation

INSTALLATION






NOTE: MTC A/C-heater control shown. ATC control similar.

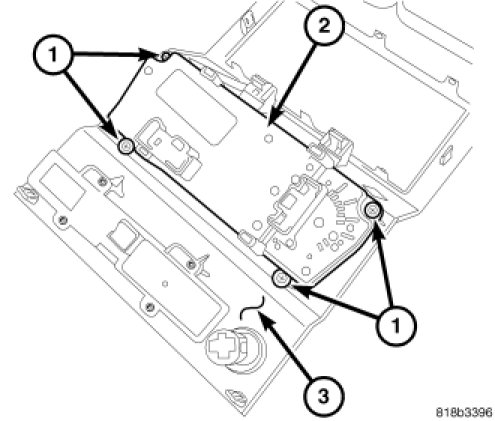

1. Install the A/C-heater control (2) onto the back of the instrument panel center bezel (3).

2. Install the four screws (1) that secure the A/C-heater control to the center bezel. Tighten the screws to 1.2 Nm (10 in. lbs.).

3. Position the center bezel to the instrument panel and connect the wire harness connectors to the back of the A/C-heater control.

4. Connect the wire harness connectors to the accessory switches and install the center bezel.

5. Reconnect the negative battery cable.

NOTE: The A/C-heater control will automatically perform the Actuator Calibration function when the ignition is initially turned on when installing a new control or when reinstalling the original control. However, the Actuator Calibration function must be manually initiated using a scan tool if the A/C-heater control has been previously installed in another vehicle.

6. If required, initiate the Actuator Calibration function using a scan tool.
