Removal

REMOVAL





The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

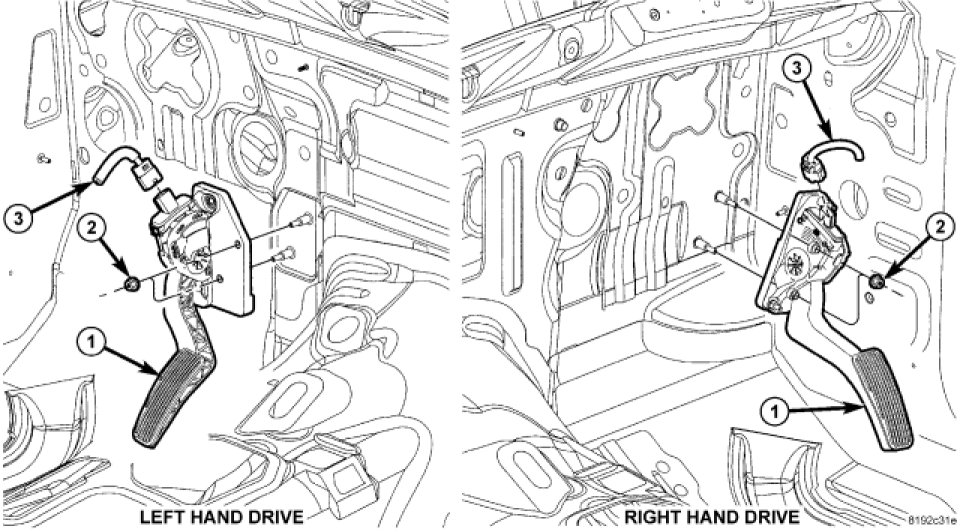

1. Disconnect electrical connector (3) at APPS.

2. Remove two accelerator pedal mounting bracket nuts (2).

3. Remove accelerator pedal/APPS assembly (1) from vehicle.
