Removal

REMOVAL - 3.7L

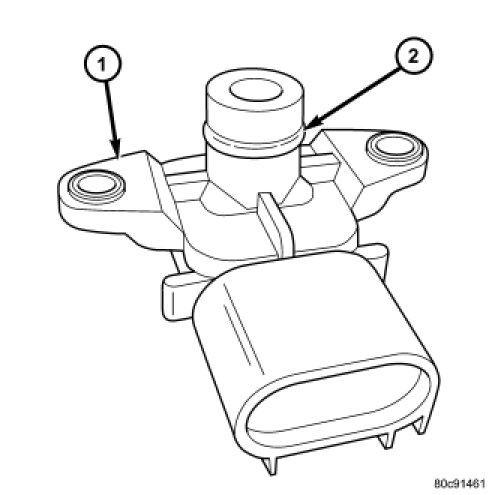

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the front of the intake manifold.





An O-ring (2) is used to seal the sensor to the intake manifold .




1. Disconnect electrical connector at sensor (2).

2. Clean area around MAP sensor.

3. Remove 2 sensor mounting screws (1).

4. Remove MAP sensor from intake manifold.

5. Check condition of sensor O-ring.
