Ignition Switch

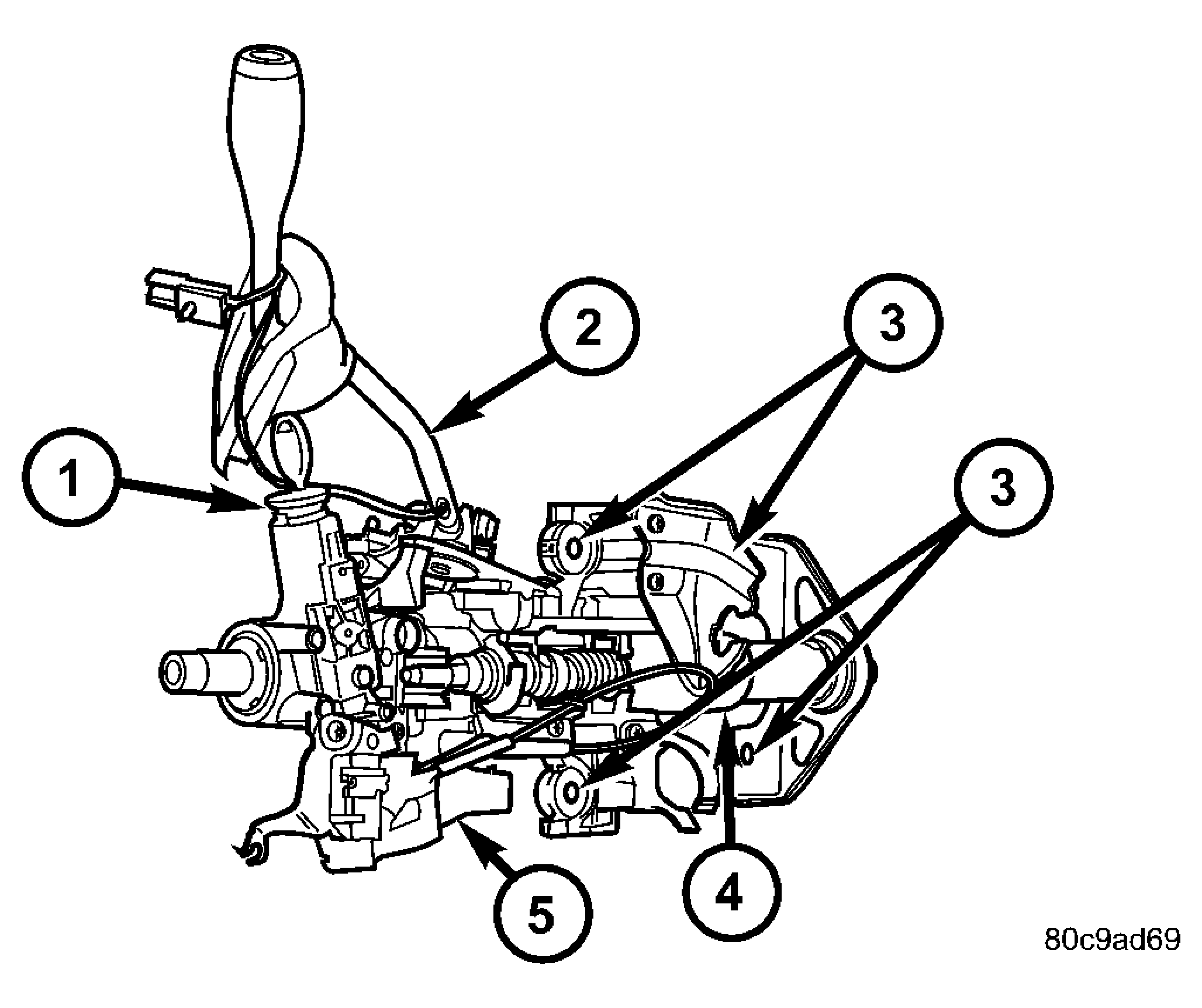

Fig 1: Identifying Key Cylinder, Gear Shift Lever, Mounting Holes, Steering Column & Ignition Switch
| 1 - KEY CYLINDER |
| 2 - GEAR SHIFT LEVER |
| 3 - MOUNTING HOLES |
| 4 - STEERING COLUMN |
| 5 - IGNITION SWITCH |
The ignition switch (5) is located on the steering column (4). It is used as the main on/off switching device for most electrical components. The mechanical key cylinder is used to engage/disengage the electrical ignition switch.
