B2101-Ignition Run/Start Input Circuit Low: Notes

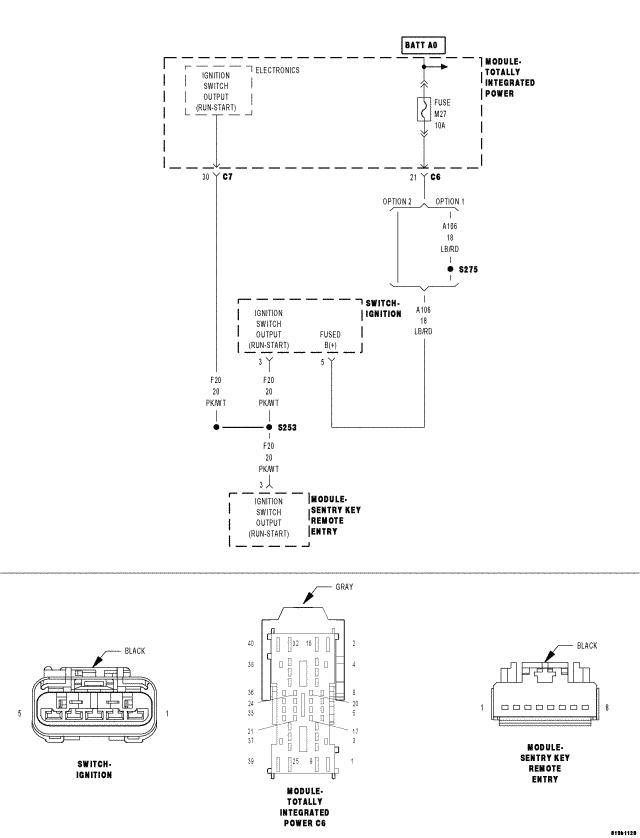

Fig 1: Identifying Ignition Run/Start Input Circuit

GC0061562

Courtesy of CHRYSLER LLC
