Installation

INSTALLATION

1. Check O-ring for damage and lubricate the O-ring with engine oil before installing the crankshaft position sensor.

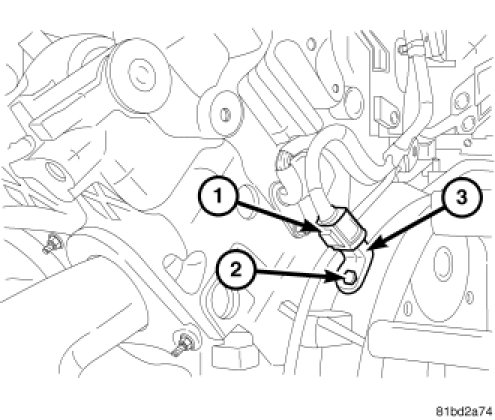

2. Install the crankshaft position sensor (3).




3. Install and tighten the crankshaft position sensor bolt (2).
4. Connect the crankshaft position sensor harness connector (1) to the crankshaft position sensor (3).
5. Lower vehicle.
6. Connect the negative battery cable.
