P0335-Crankshaft Position Sensor Circuit: Notes

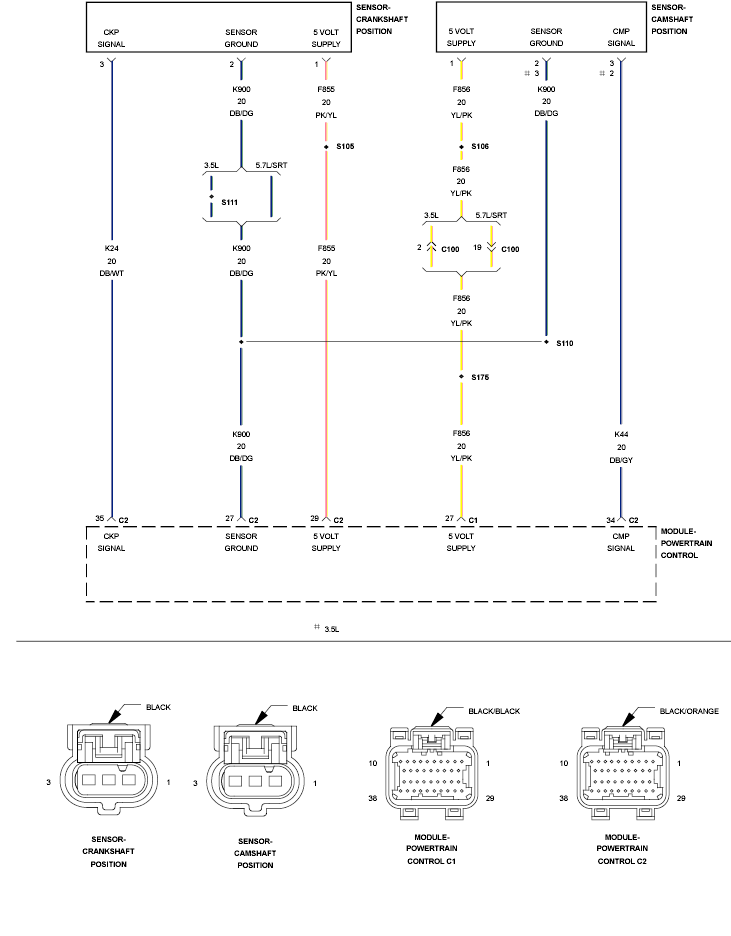

Fig 1: Crankshaft/Camshaft Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article .
