B2332-Horn Switch Input Circuit/Performance: Notes

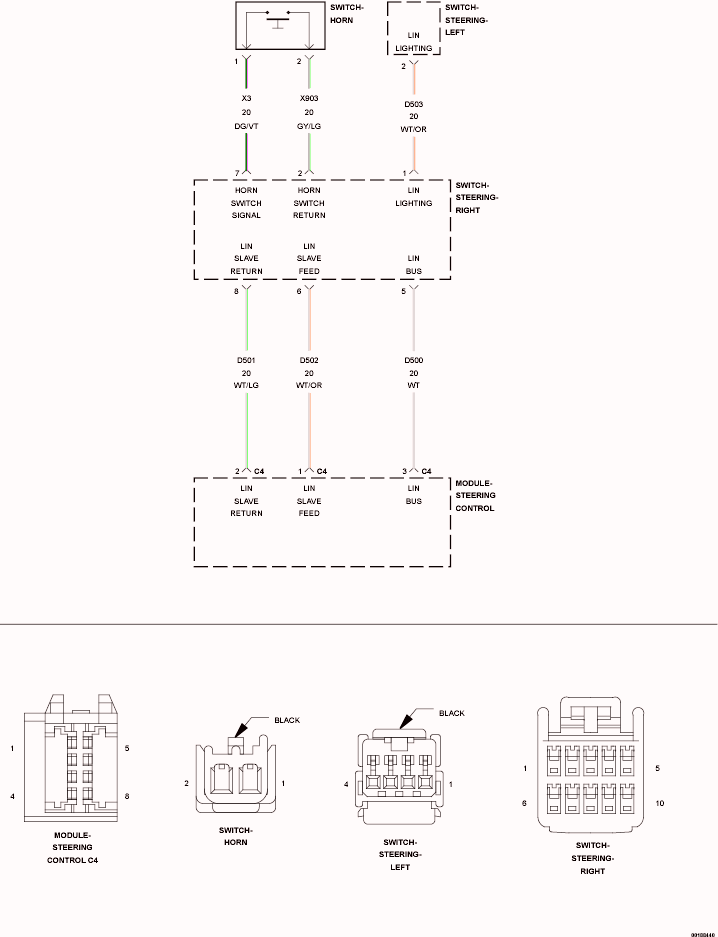

Fig 1: Horn Switch Input Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
